Запчасти Case IH STEIGER 400 (55.024.AA[02]) - HARNESS - TRANSMISSION (55) - ELECTRICAL SYSTEMS

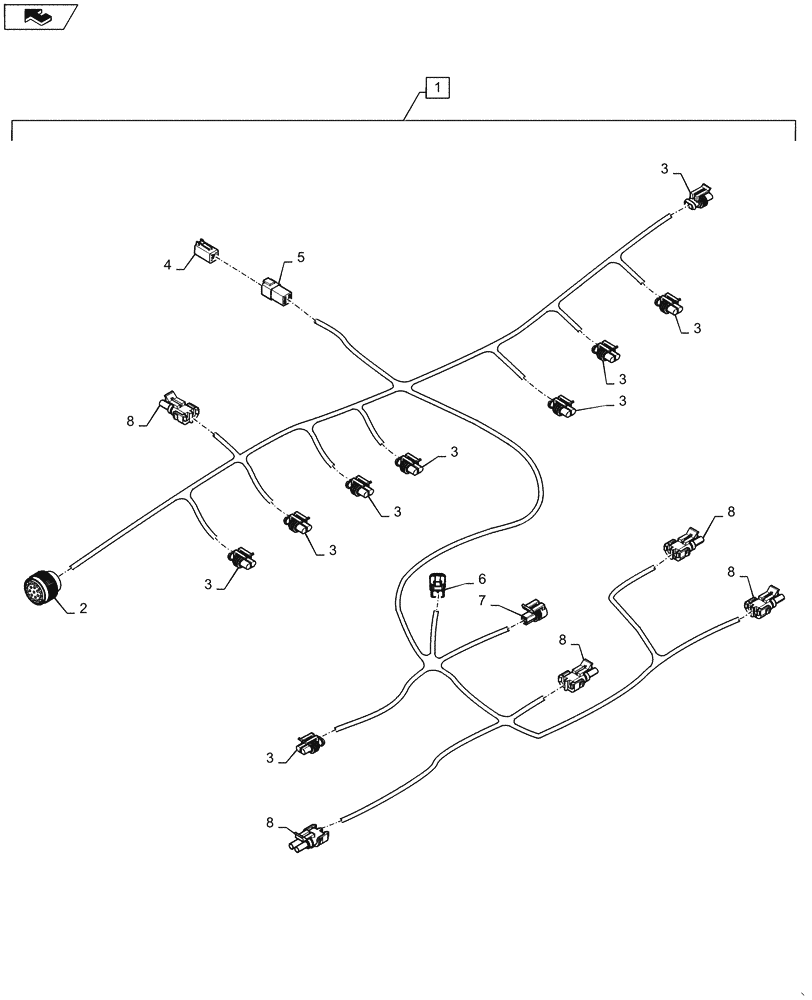

Схема запчастей Case IH STEIGER 400 - (55.024.AA[02]) - HARNESS - TRANSMISSION (55) - ELECTRICAL SYSTEMS
2
6
8
8
3
3
3
4
8
8
3
1
home
7
5
8
3
3
3
3
3

Артикул

Название

Примечание

Количество

1

84195943

WIRE HARNESS

Transmission - Incl 2 - 8

1шт.

2

84177901

ELEC CONNECTOR

To Cab Harness (C005M)

1шт.

3

371614A1

ELEC CONNECTOR,Female, 2 Pin

Range Selector Solenoids (C501M, C502M, C503M, C504M, C505M, C507M, C508M, C510M, C511M)

9шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

Plug, Less PTO Harness (DC520F)

1шт.

5

225351C1

ELEC CONNECTOR,Female, 6 Pin

To PTO Harness (C520M)

1шт.

6

225316C1

ELEC CONNECTOR,Female, 2 Pin

Transmission Oil Temp (C142M)

1шт.

7

198456A1

ELEC CONNECTOR,Female

Transmission Pressure (C517M)

1шт.

8

245482C1

ELEC CONNECTOR,2 Pin

Speed Sensors (C506M, C509M, C513M, C514M, C515M)

5шт.

Выбрано товаров: 8
