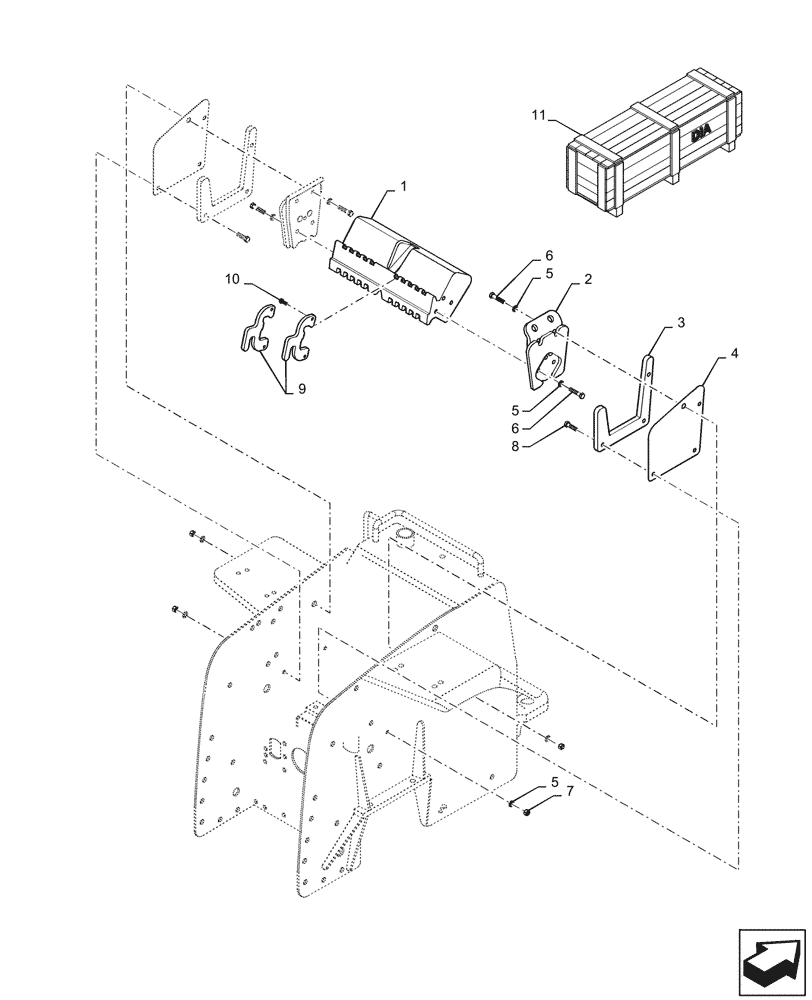

Запчасти Case IH STEIGER 400 (39.140.AI[01]) - BALLAST REAR WEIGHT ASSY. (39) - FRAMES AND BALLASTING

1

413394A1

FRAME

Weight

1шт.

2

84211259

BRACKET, SUPPORTING

Weight Lift

2шт.

3

413391A2

BRACKET

Rear Weight Support

2шт.

4

413392A2

PLATE

Weight Scrape

2шт.

5

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

18шт.

6

9846950

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

10шт.

7

9847024

NUT,M20, Cl 10

8шт.

8

412641

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

6шт.

9

413393A1

PLATE

Suitcase Lock

2шт.

10

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

11

84312305

KIT

Rear Weight Assy, Instruction - 84308060

1шт.
