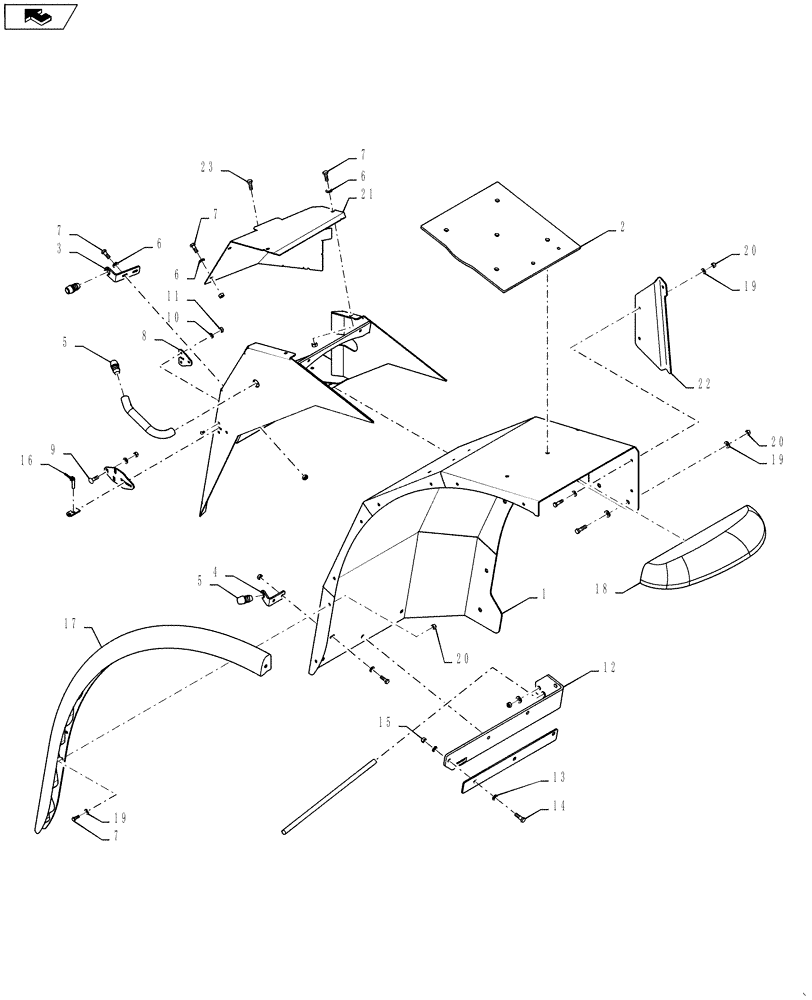

Запчасти Case IH STEIGER 400 (39.100.AY[03]) - FENDER - FRONT - RIGHT HAND (39) - FRAMES AND BALLASTING

1

47413686

4WD FRONT FENDER

Fender W, RH Side

1шт.

2

NSS

NOT SOLD SEPARAT

Plate, Muffler Mount - Incl in 1

1шт.

3

84274611

BRACKET

Bracket, Door Stop

1шт.

4

84184232

BRACKET, SUPPORTING

Door Stop Weld

1шт.

5

363226A1

BUMPER

Door

3шт.

6

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9шт.

7

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

21шт.

8

84476138

BRACKET

Battery Door

1шт.

9

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

3шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

11

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

12

84385309

SUPPORTING ARM

Bottom Fender

1шт.

13

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

14

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

3шт.

15

337475

NUT,M12, Cl 10

3шт.

16

132757

LINCH PIN,11.11mm OD x 44.45mm L

1шт.

17

84279817

TRIM

Front Fender, RH Edge

1шт.

18

84279820

TRIM PANEL

Front Fender, RH Front

1шт.

19

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

28шт.

20

412250

NUT,M8 x 1.25, Cl 8

14шт.

21

84390465

COVER

SCR RC

1шт.

22

84335712

COVER

Row Crop SCR

1шт.

23

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

24

84399233

FOAM

Block

1шт.

25

84399225

HEAT SHIELD

Carbon Fiber - Adhesive Backed

1шт.
