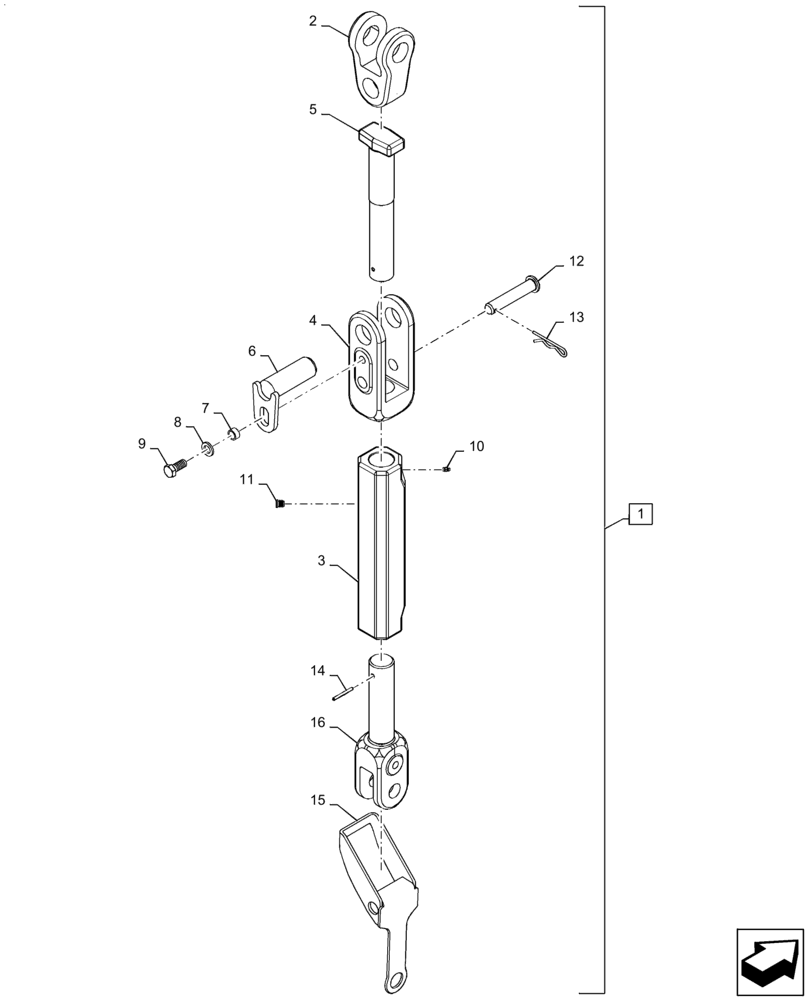

Запчасти Case IH STEIGER 400 (37.120.AX[04]) - LINK - ASSY - LIFT - RH & LH , BSN ZDF138000 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84192699

LIFT LINK

RH, Incl 2 - 16

1шт.

1

84203418

LIFT LINK

LH, Incl 2 - 16

1шт.

2

403720A1

KNUCKLE

Clevis

1шт.

3

84192700

TURNBUCKLE,2" - 8

Three Point Hitch Linkage

1шт.

4

403719A1

CLEVIS

Lift Link Float

1шт.

5

322446A1

BOLT

Lift Link

1шт.

6

70-6013T2

PIN

Lift Link Knuckle

1шт.

7

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

16.7mm x 22.2mm x 11.2mm

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

9

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

11

295004A1

PLUG

Expansion

4шт.

12

388469A1

CLEVIS PIN

Float Lock

1шт.

13

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

14

14604770

PIN,6mm OD x 55mm L, Slotted

2шт.

15

344696A2

LATCH

Handle Lock

1шт.

16

329058A1

CLEVIS,2" - 8

Lift Link, Lower

1шт.
