Запчасти Case IH STEIGER 400 (37.110.AQ[01]) - THREE POINT HITCH W/O PTO - ROCK SHAFT ASSY. (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

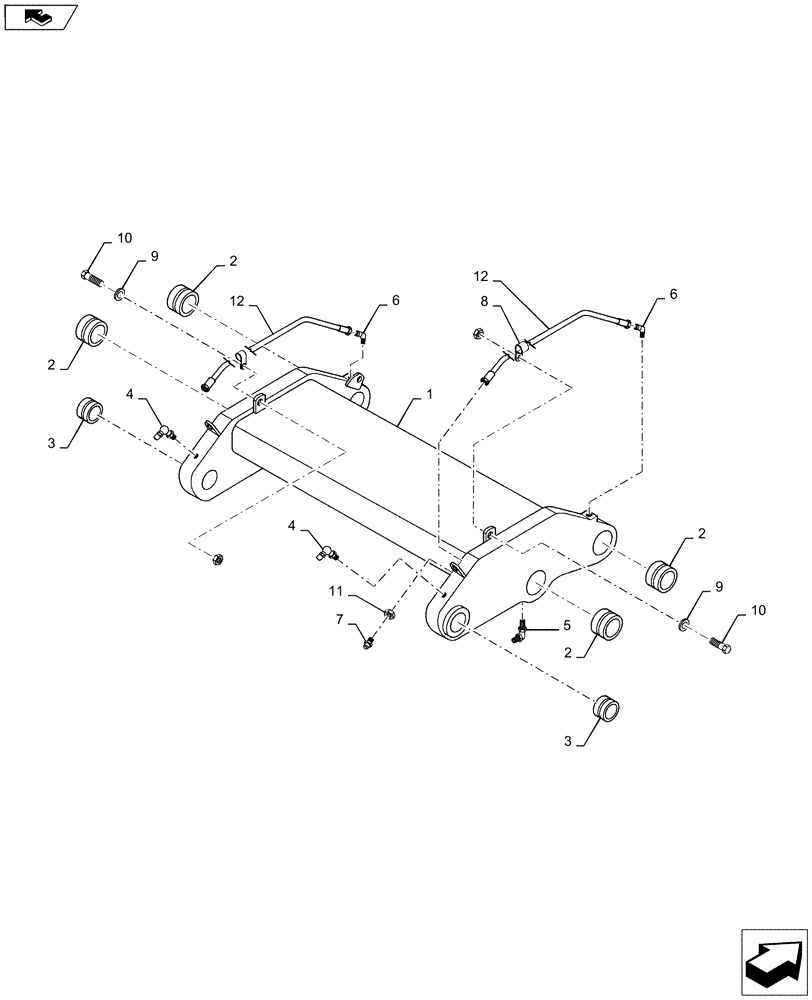

Схема запчастей Case IH STEIGER 400 - (37.110.AQ[01]) - THREE POINT HITCH W/O PTO - ROCK SHAFT ASSY. (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
12
2
2
9
2
5
10
3
8
4
6
6
3
home
7
12
1
9
2
11
4
10

Артикул

Название

Примечание

Количество

1

84192697

ROCKSHAFT

Weldment

1шт.

2

435500A1

BUSHING,51.11mm ID x 63.48mm OD x 44.45mm L

4шт.

3

328586A2

BUSHING,44.57mm ID x 57.12mm OD x 56.69mm L

Pin

2шт.

4

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

2шт.

5

80719

LUBE NIPPLE,1/8" NPT

2шт.

6

87779072

ELBOW

45 Pipe, 1/8 Male x 1/8 Female

2шт.

7

77016

LUBE NIPPLE

1/4 - 28 TPR

2шт.

8

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

Bolt, M8 x 16 x 1.6mm

2шт.

11

700713413

NUT

1/8 - 27 NPSM

2шт.

12

1339231C1

TUBE,737 mm Length

Grease Line

2шт.

Выбрано товаров: 12
