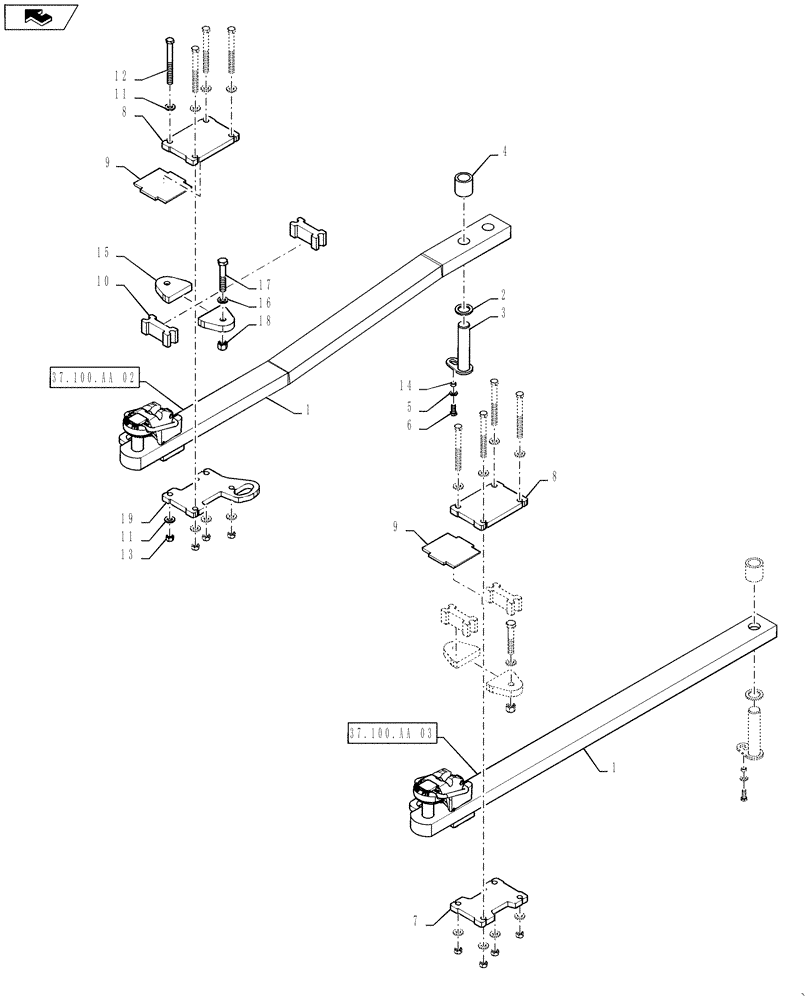

Запчасти Case IH STEIGER 400 (37.100.AA[08]) - DRAWBAR - OFFSET HIGH CAPACITY W/O THREE POINT HITCH (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87609236

DRAWBAR

Standard (Straight) - See Figure 37.100.AA(03)

1шт.

1

84185932

DRAWBAR

Offset - See Figure 39.100.04

1шт.

2

87317191

WASHER,51.56mm ID x 76.3mm OD x 6.35mm Thk

2.019 x 3.003 x.25 IN, HDN ZND

1шт.

3

87524404

PIN,50.65mm OD x 252mm L

1шт.

4

87524463

SPACER,54mm ID x 76.2mm OD x 76mm L

Drawbar

1шт.

5

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

1шт.

6

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

7

87567060

PLATE

Drawbar Bottom

1шт.

8

87564455

PLATE

Drawbar Top

1шт.

9

87746694

WEAR PAD

1шт.

10

87564454

SPACER

Drawbar

2шт.

11

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

12

827-20220

BOLT,Hex, M20 x 2.5 x 220mm, Cl 10.9

4шт.

13

829-1420

NUT,M20, Cl 10

4шт.

14

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

Spacer

1шт.

15

87725363

PLATE

Drawbar Stop

2шт.

16

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

4шт.

17

827-24140

BOLT,Hex, M24 x 3 x 140mm, Cl 10.9

2шт.

18

832-10424

NUT,M24 x 3, Cl 8

1шт.

19

87577642

BASE PLATE

Drawbar Bottom

1шт.
