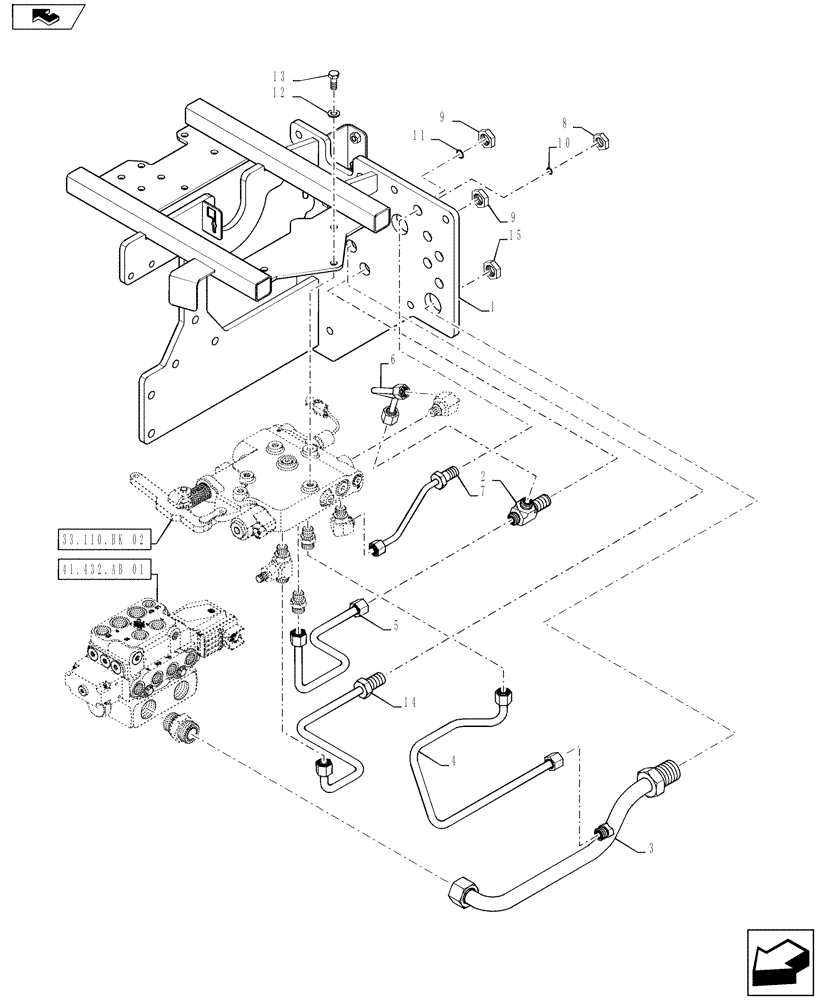

Запчасти Case IH STEIGER 400 (33.110.BJ[01]) - PARKING BRAKE - HYDR LINES - HYDRAULICS - NORTH AMERICA (33) - BRAKES & CONTROLS

1

84295567

SUPPORT

Assembly

1шт.

2

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

3

84182329

HYD TUBE

IP Pressure

1шт.

4

84182851

HYD TUBE

Tow Valve Pressure Inlet

1шт.

5

84182853

HYD TUBE

Tow Valve Reservoir Inlet

1шт.

6

84542996

TUBE

Tow Valve Tank Return

1шт.

7

84182857

HYD TUBE

Tow Valve Regulated Outlet

1шт.

8

701-909

NUT,11/16" - 16

6шт.

9

701-903

NUT,13/16" - 16

3шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

14

84182846

HYD TUBE

Park Brake Pressure

1шт.
