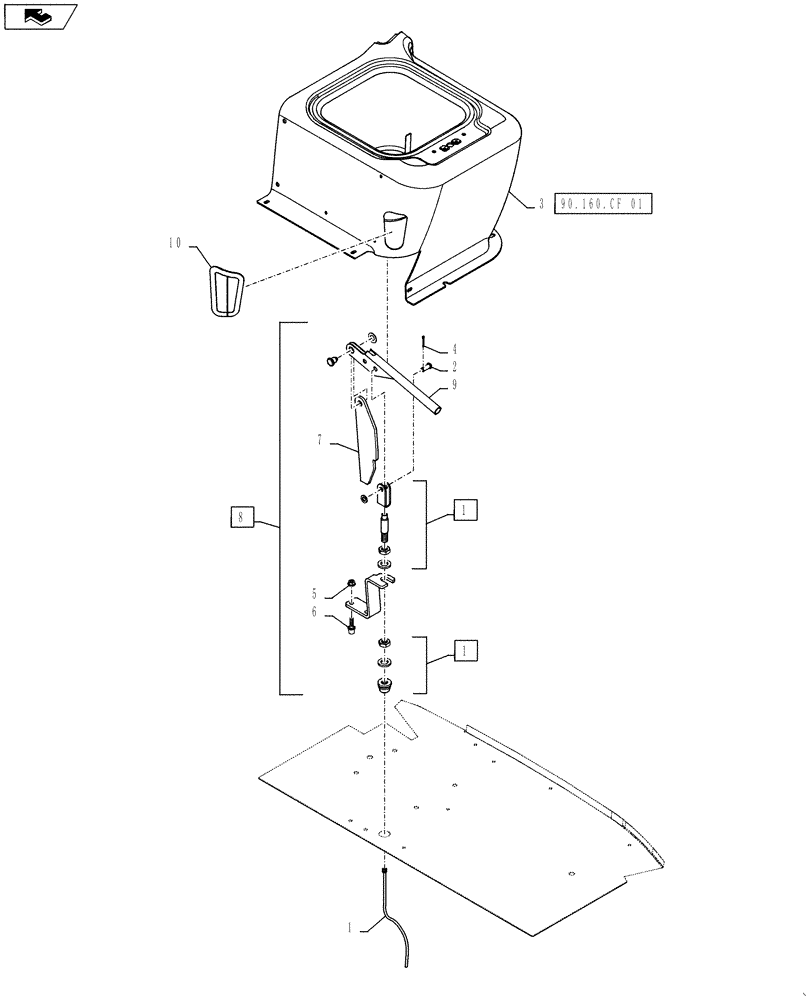

Запчасти Case IH STEIGER 400 (33.110.AJ[01]) - HAND BRAKE - INSTALLATION (33) - BRAKES & CONTROLS

1

84530796

FLEXIBLE CABLE,2467mm L

Hand Brake

1шт.

2

86625114

CLEVIS PIN,3/8" x 3/4"

1шт.

3

84332088

COVER

Electrical Area

1шт.

4

87016659

COTTER PIN,M2.5 x 20mm OAL

1шт.

5

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

6

408567A1

STUD

2шт.

7

84332108

MOUNT

Lever

1шт.

8

84530797

LEVER & PIN ASSY

Hand Brake Assy. - Incl 1 -2, 4 -9

1шт.

9

84354348

LEVER

Emergency Brake

1шт.

10

84354126

GUARD

Brush

1шт.

11

84557417

CAUTION DECAL

Secondary Brake, ISO (Not Shown)

1шт.
