Запчасти Case IH STEIGER 400 (25.102.10) - AXLE - ASSY - 425 SERIES - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCKS (25) - FRONT AXLE SYSTEM

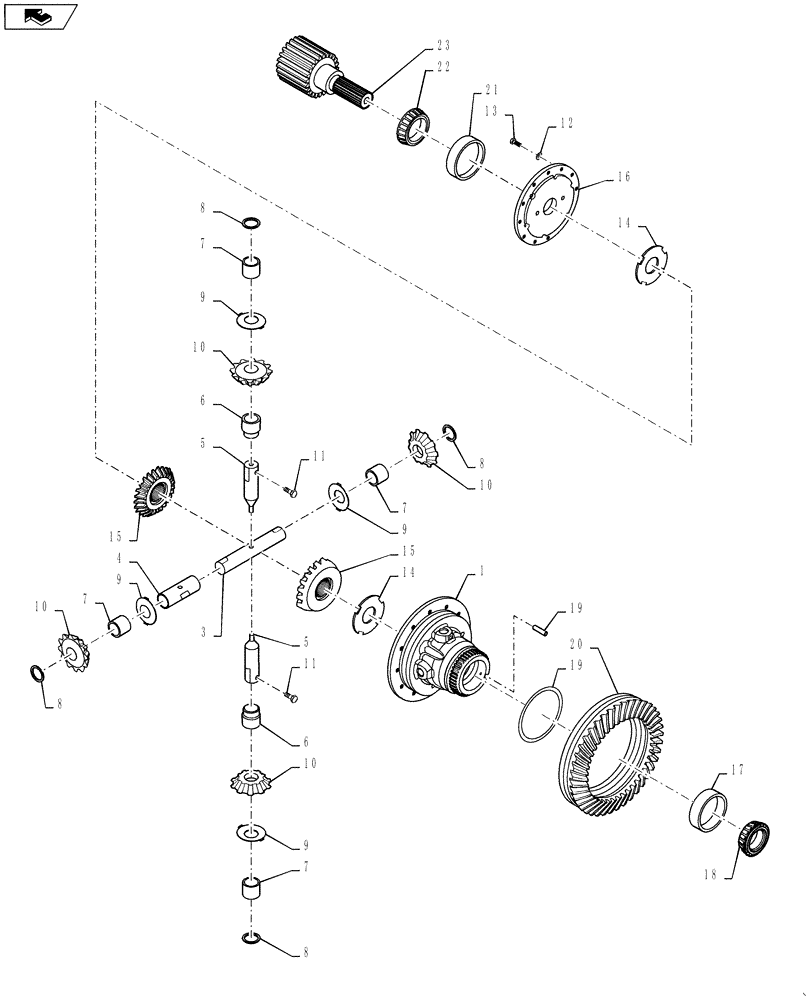

Схема запчастей Case IH STEIGER 400 - (25.102.10) - AXLE - ASSY - 425 SERIES - DIFFERENTIAL, WITHOUT DIFFERENTIAL LOCKS (25) - FRONT AXLE SYSTEM
23
9
10
9
14
4
19
7
10
15
8
8
3
11
19
22
7
8
9
10
14
9
15
1
6
8
13
6
20
7
12
16
10
home
7
11
17
5
5
18
21

Артикул

Название

Примечание

Количество

1

84323448

CASE

without Diff Lock, Incl 2

1шт.

2

87520607

PLUG

Expansion, 9mm

1шт.

3

92907C1

SHAFT

Pinion, Long

1шт.

4

1289349C1

SPACER

Long Pinion

1шт.

5

92906C1

SHORT SHAFT

Pinion

2шт.

6

1289350C1

SPACER

Short Pinion

2шт.

7

1270697C1

NEEDLE BEARING

28 Per Gear

112шт.

8

1289348C1

RING

Retaining

4шт.

9

92718C2

THRUST WASHER,32.7mm ID x 70mm OD x 1.6mm Thk

4шт.

10

92905C1

PINION

4шт.

11

1997421C1

BOLT

Diff Cross Pin

2шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

24шт.

13

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

24шт.

14

87629650

THRUST WASHER

2шт.

15

1259633C3

GEAR

Diff Bevel 20T

2шт.

16

84159161

COVER

Differential Case

1шт.

17

622337C1

BEARING CUP,129.99mm OD x 23.90mm Thk

1шт.

18

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

19

NSS

NOT SOLD SEPARAT

Incl in 1

1шт.

20

302259A2

BEVEL GEAR

Pinion Shaft and Gears, Front Axle, (Pinion Shaft Not Shown)

1шт.

20

302260A1

GEAR SET

Pinion Shaft and Gears, Rear Axle, (Not Shown)

1шт.

21

253931A1

BEARING, CUP,179.99mm OD x 28.95mm W

1шт.

22

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

23

310693A1

SHAFT

Sun Gear, Short

1шт.

Выбрано товаров: 24
