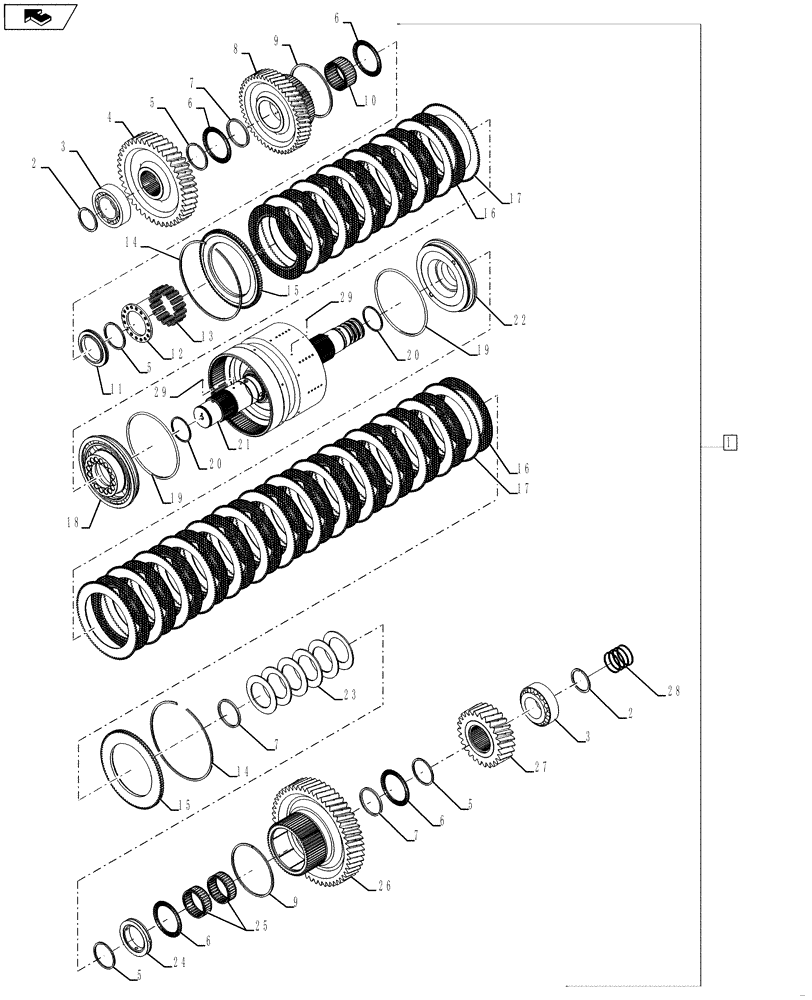

Запчасти Case IH STEIGER 400 (21.155.04) - TRANSMISSION - POWER SHIFT - 4TH SHAFT, PS4, 8C AND 8.5C (21) - TRANSMISSION

1

87350312

CLUTCH INPUT SHAFT

4th, 9 Clutch, 8C, Inc. 2 - 29

1шт.

1

87350309

CLUTCH INPUT SHAFT

4th, 9 Clutch, 8.5C, Inc. 2 - 29

1шт.

2

427674A1

SNAP RING

2.5mm, 0.098

1шт.

2

427675A1

SNAP RING

2.6mm, 0.102

1шт.

2

427676A1

SNAP RING

2.7mm, 0.106

1шт.

2

427678A1

SNAP RING

2.8mm, 0.110

1шт.

2

427679A1

SNAP RING

2.9mm, 0.114

1шт.

2

427680A1

SNAP RING

3.0mm, 0.118

1шт.

3

84314690

ROLLER BEARING

Taper

2шт.

4

87350315

DRIVING GEAR

4R

1шт.

5

S5040S00F

RING

Retaining

4шт.

6

84314644

THRUST BEARING

4шт.

7

362611A1

SPACER

Needle Bearing

3шт.

8

87350316

DRIVEN GEAR

4R

1шт.

9

392073A1

SEALING RING

2шт.

10

87350319

NEEDLE BEARING

1шт.

11

87350321

THRUST WASHER

1шт.

12

362615A1

PLATE

Spring

1шт.

13

362616A1

SPRING

Return

16шт.

14

359235A1

RING, SNAP

2шт.

15

87350325

END PLATE

Clutch End, 8C Only

2шт.

15

362617A1

PLATE

Clutch End, 8.5C Only

2шт.

16

362618A1

CLUTCH DISC

Faced

1шт.

17

362628A1

CLUTCH DISC

Steel, 2.40mm, 8.5C Only

1шт.

17

362629A1

CLUTCH DISC

Steel, 2.60mm, 8C & 8.5C

1шт.

18

84314691

PISTON

9, RR Clutch

1шт.

19

87431400

RING

D

2шт.

20

S4410S00F

RING

Seal

2шт.

21

87350328

SHAFT

4th Drum Assy, 8C Only

1шт.

21

87350326

SHAFT

4th Drum Assy, 8.5C Only

1шт.

22

364825A1

PISTON

9, FR Clutch

1шт.

23

364826A1

PLATE

Spring

6шт.

24

87350331

THRUST WASHER

1шт.

25

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

2шт.

26

87350334

DRIVEN GEAR

4F

1шт.

27

87350339

DRIVING GEAR

4F

1шт.

28

87431401

RING

Seal

4шт.

29

S14701960

BALL,3.968mm OD

Steel

1шт.
