Запчасти Case IH STEIGER 400 (14.102.08) - PTO DRIVELINES & MOUNTING - EUROPE (14) - MAIN GEARBOX & DRIVE

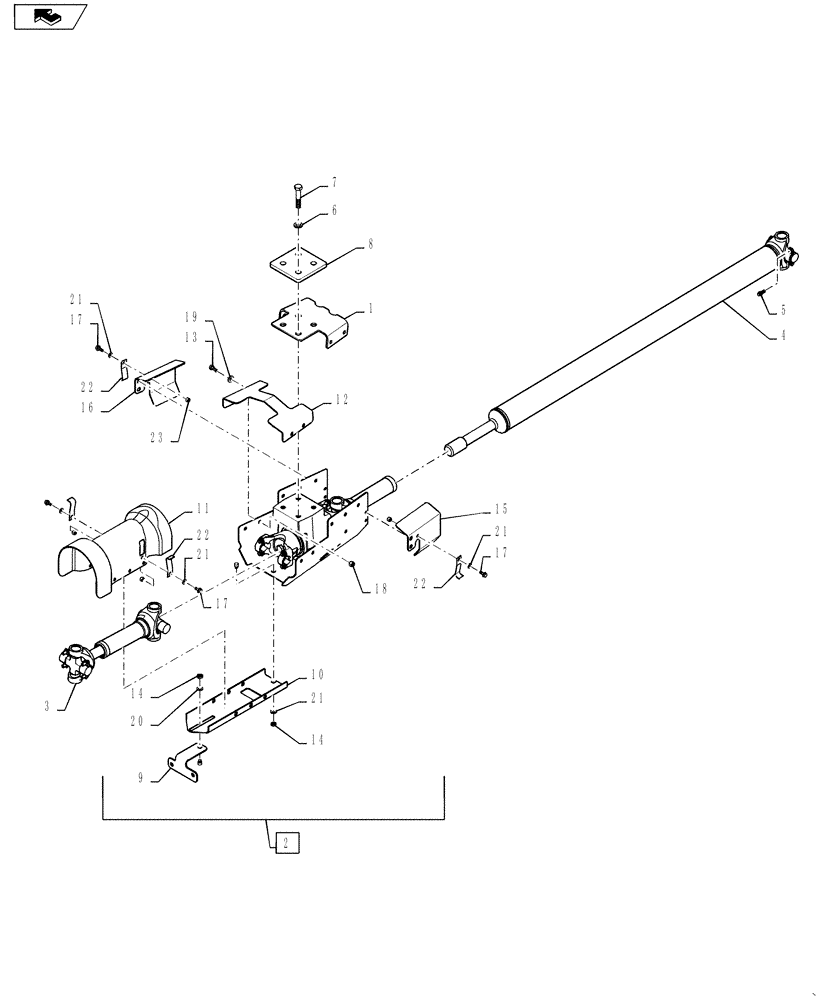

Схема запчастей Case IH STEIGER 400 - (14.102.08) - PTO DRIVELINES & MOUNTING - EUROPE (14) - MAIN GEARBOX & DRIVE
3
21
7
22
5
17
22
18
8
20
17
1
12
10
19
11
21
17
13
2
15
4
21
6
16
22
home
23
14
14
21
9

Артикул

Название

Примечание

Количество

1

404604A1

BRACKET

Articulation Hose Hanger

1шт.

Reference Figure 14.102.09

1шт.

2

404603A1

BEARING ASSY

PTO Hanger

1шт.

Reference Figure 14.102.09

1шт.

3

84216132

PTO SHAFT

Articulation

1шт.

Reference Figure 14.102.09

1шт.

4

84216135

PTO SHAFT

Rear

1шт.

Reference Figure 14.102.09

1шт.

5

868-10020

12 PT SCREW,M10 x 20mm, Cl 12.9

16шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

7

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

4шт.

8

84273368

SPACER

PTO Hanger

1шт.

9

84274237

BRACKET, SUPPORTING

PTO Shield

1шт.

10

84273365

BRACKET, SUPPORTING

PTO Shield

1шт.

11

84409734

SHIELD

PTO Articulation

1шт.

12

84327637

SHIELD

PTO Articulation

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

14

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

2шт.

15

84409732

SHIELD

Assy, PTO LH

1шт.

16

84409736

SHIELD

Assy., PTO RH

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

14шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

20

87389396

BELLEVILLE WASHER,M14 Bolt Size x 30mm OD x 2.4mm Thk

Belleville, 14 x 30 x 2.4 ZNM

2шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Lock, 18mm ZNM

4шт.

22

84409709

ACCESS COVER

Grease Zirk Access

4шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

Выбрано товаров: 27
