(14.102.04) - HYDRAULIC PUMP DRIVE W/PTO - IDLER SHAFT, INPUT SHAFT, OUTPUT SHAFT, & DRIVE GEAR

Запчасти Case IH STEIGER 400 (14.102.04) - HYDRAULIC PUMP DRIVE W/PTO - IDLER SHAFT, INPUT SHAFT, OUTPUT SHAFT, & DRIVE GEAR (14) - MAIN GEARBOX & DRIVE

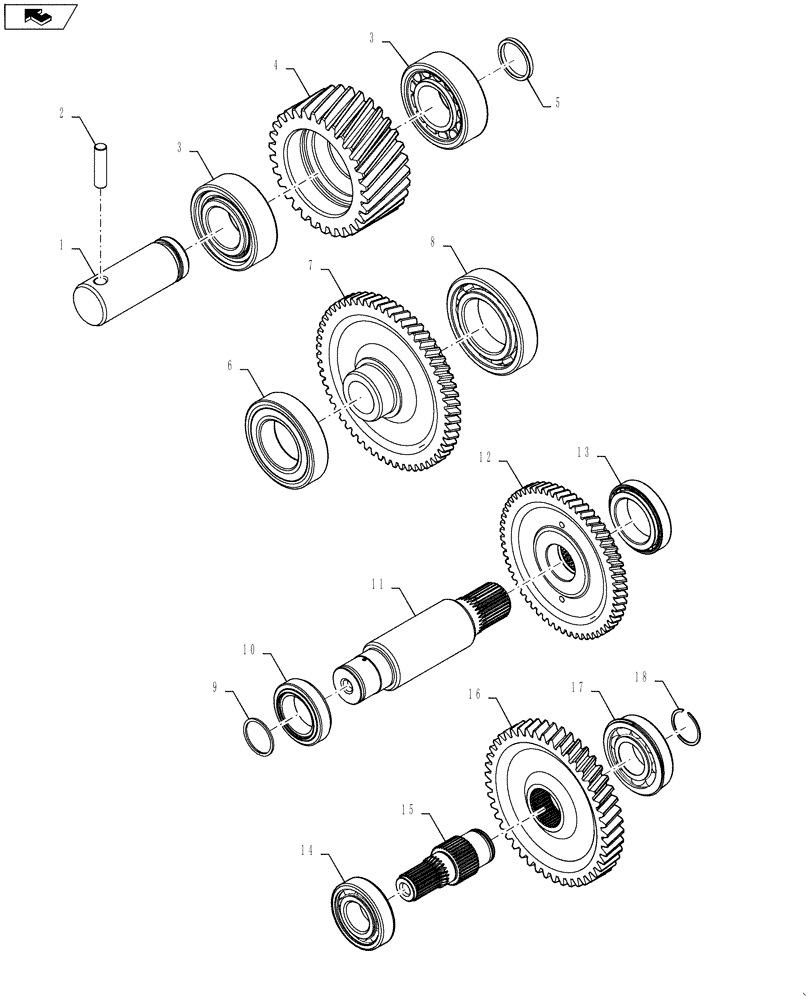

Схема запчастей Case IH STEIGER 400 - (14.102.04) - HYDRAULIC PUMP DRIVE W/PTO - IDLER SHAFT, INPUT SHAFT, OUTPUT SHAFT, & DRIVE GEAR (14) - MAIN GEARBOX & DRIVE
3
2
7
home
14
1
4
17
18
15
13
10
5
16
9
11
12
3
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315825

SHAFT

Pump Idler

1шт.

2

84315868

GUIDE PIN

Pump Idler

1шт.

3

84315869

ROLLER BEARING

Pump Idler

2шт.

4

84315870

GEAR

Pump Idler

1шт.

5

428137A1

O-RING

Pump Idler

1шт.

6

84315873

BALL BEARING

Pump Drive Gear

1шт.

7

84315871

GEAR

Pump Drive Gear

1шт.

8

84315875

BALL BEARING

Pump Drive Gear

1шт.

9

S3070S00F

RING

Seal, Input Shaft, Pump Only

2шт.

10

S8730S00F

TAPERED BEARING,55mm ID x 90mm OD x 23mm W

Input Shaft, Pump Only

1шт.

11

84315813

SHAFT

PTO Input, Pump Only

1шт.

12

84315818

GEAR

Pump Drive, Input shaft, Pump Only

1шт.

13

352817A1

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

Input Shaft, Pump Only

1шт.

14

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

Yoke - Output Shaft, PTO W/ Pump Only

1шт.

15

84315821

PTO SHAFT

Yoke - Output Shaft, PTO W/ Pump Only

1шт.

16

84315824

GEAR

Yoke - Output Shaft, PTO W/ Pump Only

1шт.

17

375559A1

BEARING, BALL

Yoke - Output Shaft, PTO W/ Pump Only

1шт.

18

375560A1

RING, SNAP

RING SNAP Yoke - Output Shaft, PTO W/ Pump Only

1шт.
