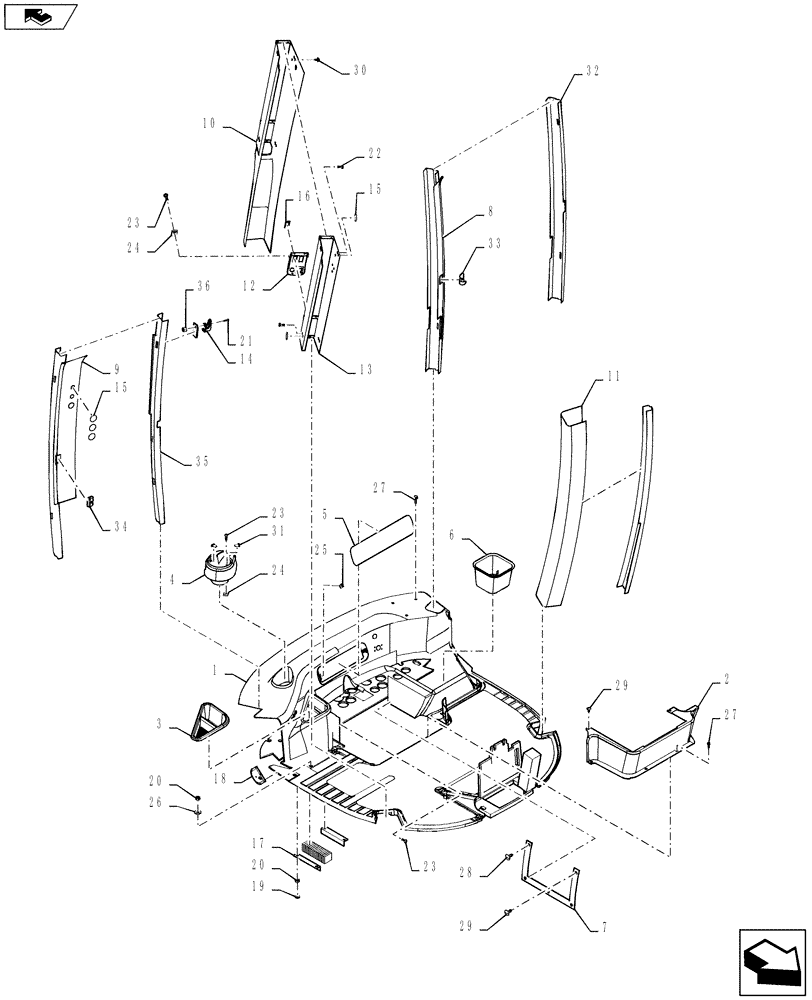

Запчасти Case IH STEIGER 400 (90.160.01[01]) - CAB INTERIOR TRIM - COVERS, PANELS, AND FASTENERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84249986

COVER

RH Rear

1шт.

2

84308033

COVER

Seat Kickplate

1шт.

3

84249993

TRAY

INSERT, Storage

1шт.

4

84210915

HOLDER,Cup

Cup Holder, Case IH

1шт.

5

84210917

TRIM PANEL

Louver, Case IH

1шт.

6

119308A2

TRAY

Storage

1шт.

7

369937A1

NET

Cargo

1шт.

8

84249994

COVER

LH C-Post

1шт.

9

84304557

COVER

RH C-Post

1шт.

10

84230453

COVER

RH A-Post

1шт.

11

87732643

COVER

LH A-Post

1шт.

12

358343A2

BEZEL

RH A-Post

1шт.

13

303158A5

BRACKET

Bracket

1шт.

14

114549A1

COAT HOOK

1шт.

15

376597A2

DECAL

Hole Cover

7шт.

16

245918C1

LENS

Blanking Plug

2шт.

17

308579A1

BRACKET

Cable Access

2шт.

18

84173606

GROMMET

Implement Access

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

11шт.

21

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

2шт.

22

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

23

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

6шт.

24

177269A1

SPRING NUT,M4.2

3шт.

25

302862A1

SPRING NUT,4.2 Thread

M4.2

2шт.

26

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

7шт.

27

855-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

5шт.

28

84308891

FASTENER

Christmas Tree

2шт.

29

369929A1

FASTENER

Christmas Tree

7шт.

30

376553A1

FASTENER

Christmas Tree

3шт.

31

304061A1

BUMPER,Rubber

Rubber

4шт.

32

84252188

TRIM,1226mm L

Post Cover, LH

1шт.

33

84252638

DOOR COVER

LH Door Latch

1шт.

34

84252639

DOOR COVER

RH Door Latch

1шт.

35

84252190

TRIM,1049mm L

Post Cover, RH

1шт.

36

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.
