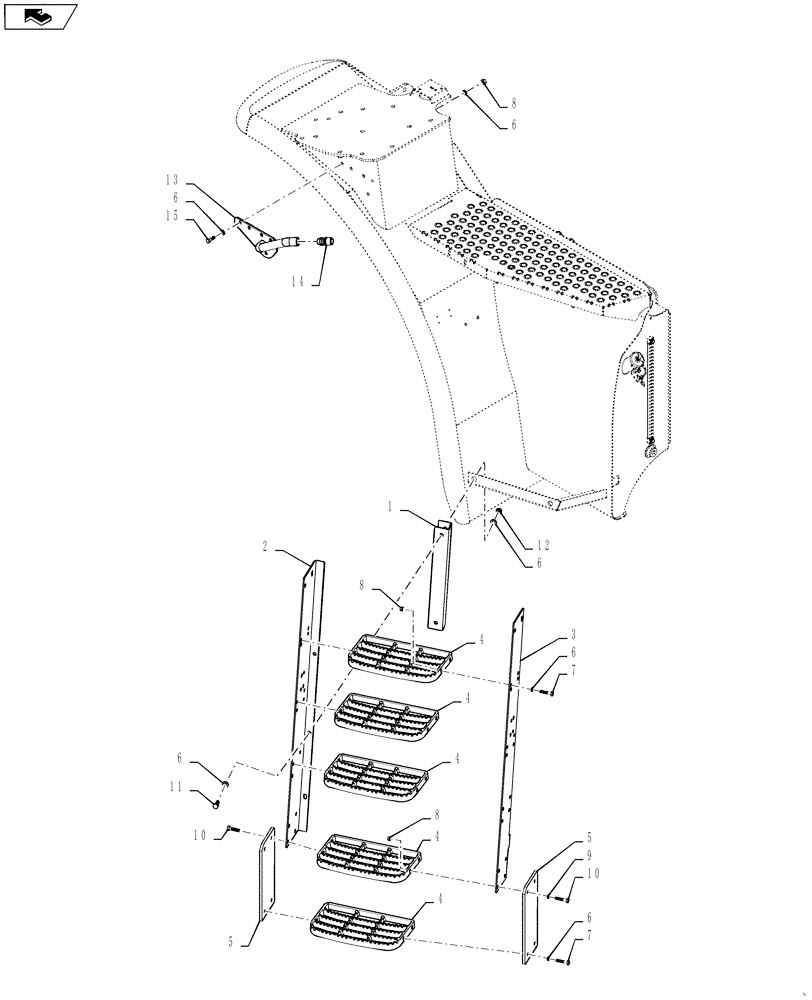

Запчасти Case IH STEIGER 400 (90.118.02) - STEP - ASSY - NAO/AUS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84371199

BRACKET, SUPPORTING

Plate, Step Support

1шт.

2

84371187

BRACKET, SUPPORTING

Step

1шт.

3

84371194

BRACKET, SUPPORTING

Step

1шт.

4

87301185

STEP

Cast Aluminum with Finish

5шт.

5

384116A1

SUPPORT

Step

2шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

18шт.

7

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

12шт.

8

412141

NUT,M10 x 1.5, Cl 8

21шт.

9

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

10

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

11

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

84363702

BRACKET, SUPPORTING

Door Stop Assy.

1шт.

14

363226A1

BUMPER

Door

1шт.

15

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.
