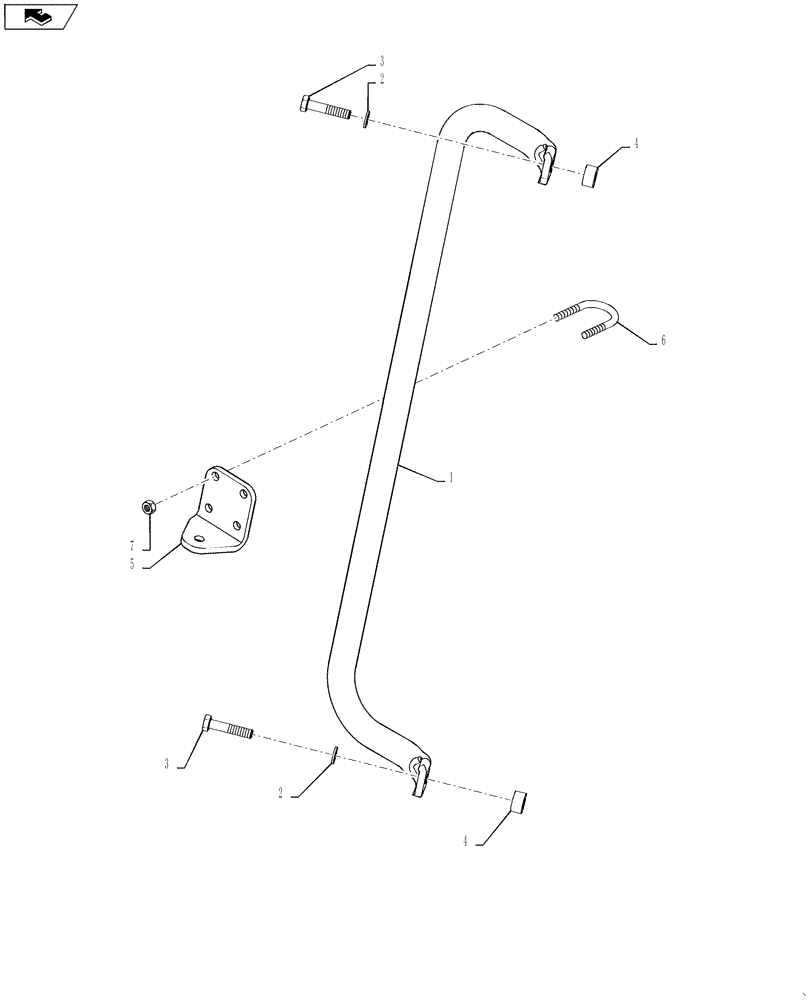

Запчасти Case IH STEIGER 400 (90.110.01) - MONITOR - MOUNTING - "A" POST MONITOR MOUNT - RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

369275A1

TUBE

Monitor Mount

1шт.

2

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

9780069

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

4

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

Round

2шт.

5

87530660

BRACKET

Monitor Mount

1шт.

6

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

2шт.

7

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.
