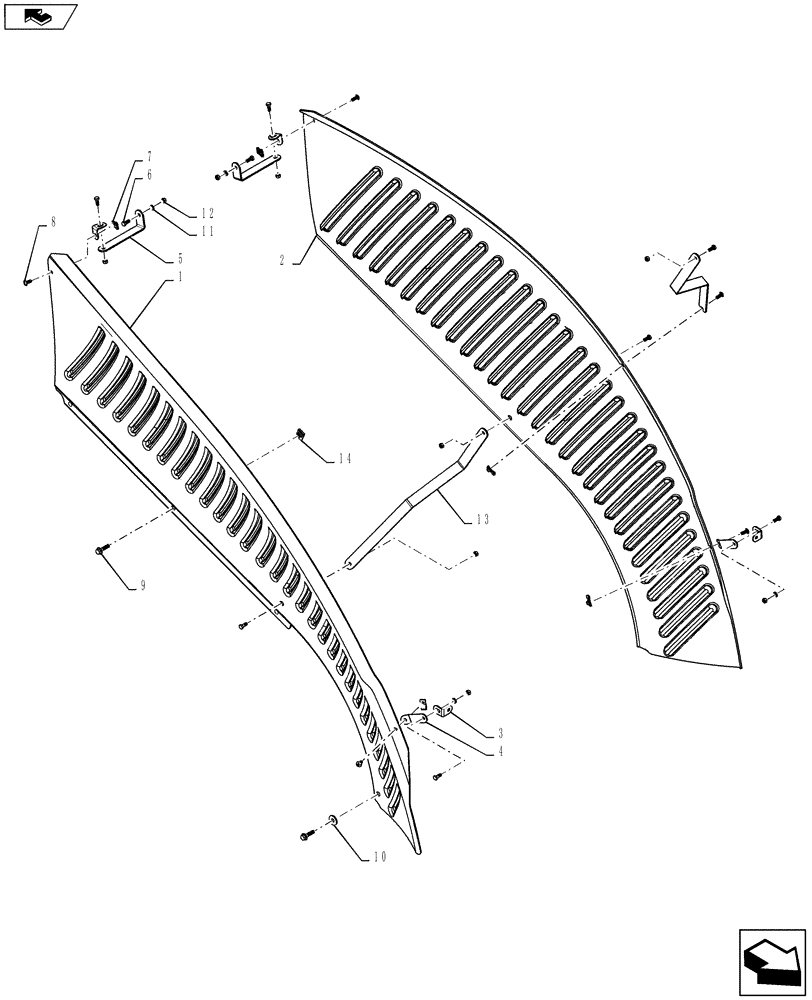

Запчасти Case IH STEIGER 400 (90.100.04[01]) - ENGINE HOOD PANEL - DEBRIS SCREEN BSN ZCF130395 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84401680

SCREEN

RH , Engine Debris

1шт.

2

84401681

SCREEN

LH, Engine Debris

1шт.

3

84263279

BRACKET

RR, Debris Shield

4шт.

4

84263280

BRACKET

RR, Debris Shield

2шт.

5

84263281

BRACKET

RR, Debris Shield

2шт.

6

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

8шт.

7

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

6шт.

8

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

6шт.

9

9804262

BOLT,M10 x 39.2mm, Cl 8.8

8шт.

10

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

2шт.

11

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

13

84304573

BRACKET

RR, Debris Shield

2шт.

14

833-40310

NUT,M10, U

6шт.
