Запчасти Case IH STEIGER 400 (10.254.01[02]) - EXHAUST SYSTEM - SCR, WHEELED - STEIGER 400 & 450 (10) - ENGINE

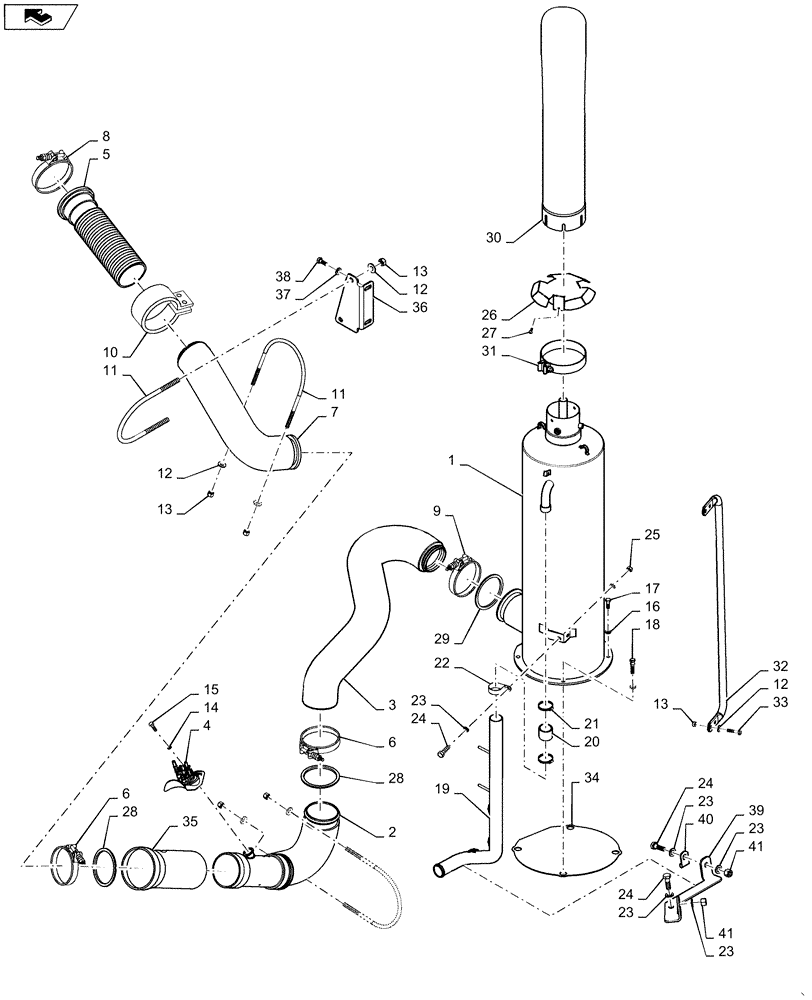

Схема запчастей Case IH STEIGER 400 - (10.254.01[02]) - EXHAUST SYSTEM - SCR, WHEELED - STEIGER 400 & 450 (10) - ENGINE
23
23
14
2
17
13
28
22
29
23
26
12
24
23
36
34
33
23
3
6
7
13
11
12
41
8
41
18
31
27
20
9
25
13
35
10
1
11
6
38
19
4
39
12
16
37
21
28
15
40
24
32
24
home
30
5

Артикул

Название

Примечание

Количество

1

84366815

MUFFLER

SCR 28L Substrate Volume, Stieger Model 400 - 400 HP, Wheeled

1шт.

1

84366819

MUFFLER

SCR 33L Substrate Volume, Stieger Model 450 - 450 HP, Wheeled

1шт.

2

84412504

TUBE

Doser Assembly

1шт.

3

84288088

EXHAUST SYSTEM PIPE,101.60 - 127.00 mm OD x 629, 518 mm L

Doser To SCR Exhaust

1шт.

4

84248058

MODULE

DNOX2 Urea Dosing

1шт.

4

47511725R

REMAN ELECT CONTROL

STEIGER 400, DENOX2 Dosing, STEIGER 450, DNOX2 Urea Dosing Both 4WD TRACTOR (12/10-), Reman for New PN 84248058

1шт.

4

47511725C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

84481803

EXHAUST SYSTEM PIPE

Adaptor, Turbo

1шт.

6

84356331

CLAMP,118mm OD x 26mm W

Exhaust

2шт.

7

84481781

EXHAUST SYSTEM PIPE

Turbo To Doser

1шт.

8

84347357

CLAMP

1шт.

9

84469765

CLAMP,Exhaust; 5"

5 In. Exhaust

1шт.

10

90-8319T1

CLAMP

1шт.

11

84354957

U-BOLT

Exhaust Support

3шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

13

832-46410

NUT,M10 x 1.5, Cl 8

6шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

15

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

3шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

17

84364685

SPECIAL BOLT

Breakaway, M12

2шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.

19

84292726

AIR INTAKE TUBE,706.70, 120.80 mm L

Aspiration

1шт.

20

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

2шт.

21

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

1шт.

22

515-23508

CLAMP,2", Insul, 3/8" Bolt

2шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

26

84331669

INTRODUCTION CAP

Temp Muffler Shipping Cap

1шт.

27

782-84413

SELF-TAP SCREW,Hex Flg, M4.8 x 1.6 x 13mm

3шт.

28

84349222

GASKET,1.3mm Thk

4 IN Exhaust

2шт.

29

84349224

GASKET

5 IN Exhaust

1шт.

30

84525934

ELBOW

Ejector Stack Assy.

1шт.

31

87430634

CLAMP,159.5mm ID

Muffler / Elbow

1шт.

32

84255662

HANDLE

Grab

1шт.

33

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

4шт.

34

84416451

HEAT SHIELD

SCR

1шт.

35

84366840

HEAT SHIELD

1шт.

36

47465324

BRACKET

Exhaust Tube

1шт.

37

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

39

47468210

BRACKET

Sensor Support

1шт.

40

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1шт.

41

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

Выбрано товаров: 44
