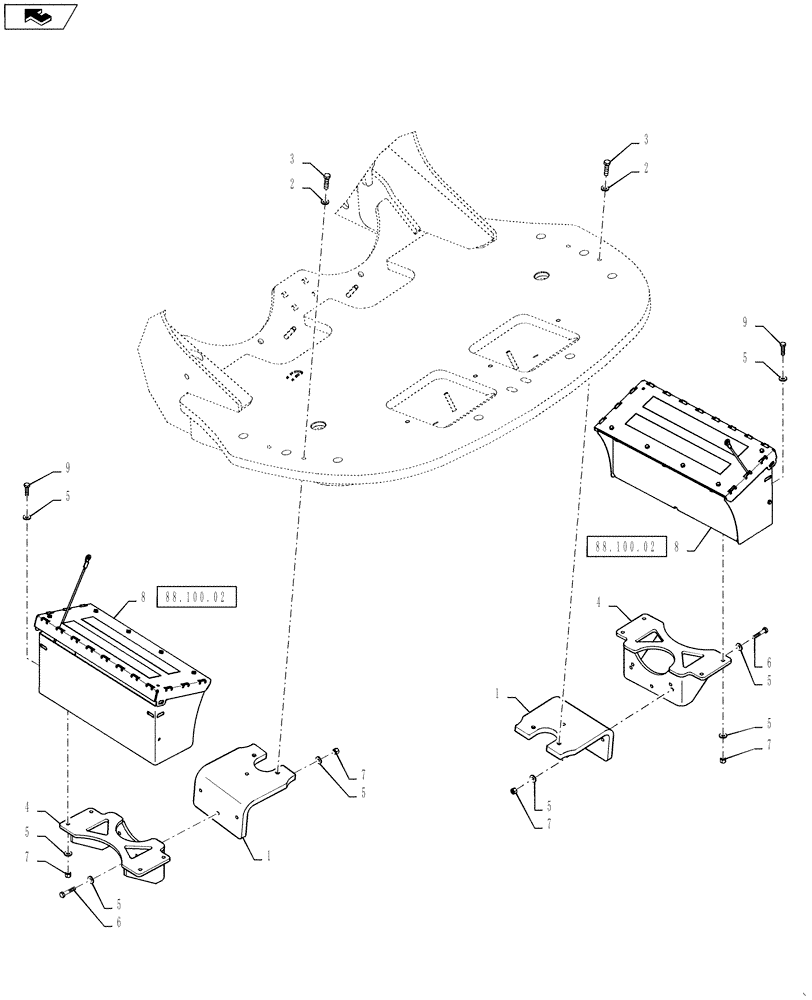

Запчасти Case IH STEIGER 400 (88.100.01) - STORAGE BOX INSTALLATION (88) - ACCESSORIES

1

84210255

BRACKET, SUPPORTING

2шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

4

84187148

BRACKET

2шт.

5

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

6

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

8

NSS

NOT SOLD SEPARAT

Storage Box - Ref. Figure 88.100.02

2шт.

9

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.
