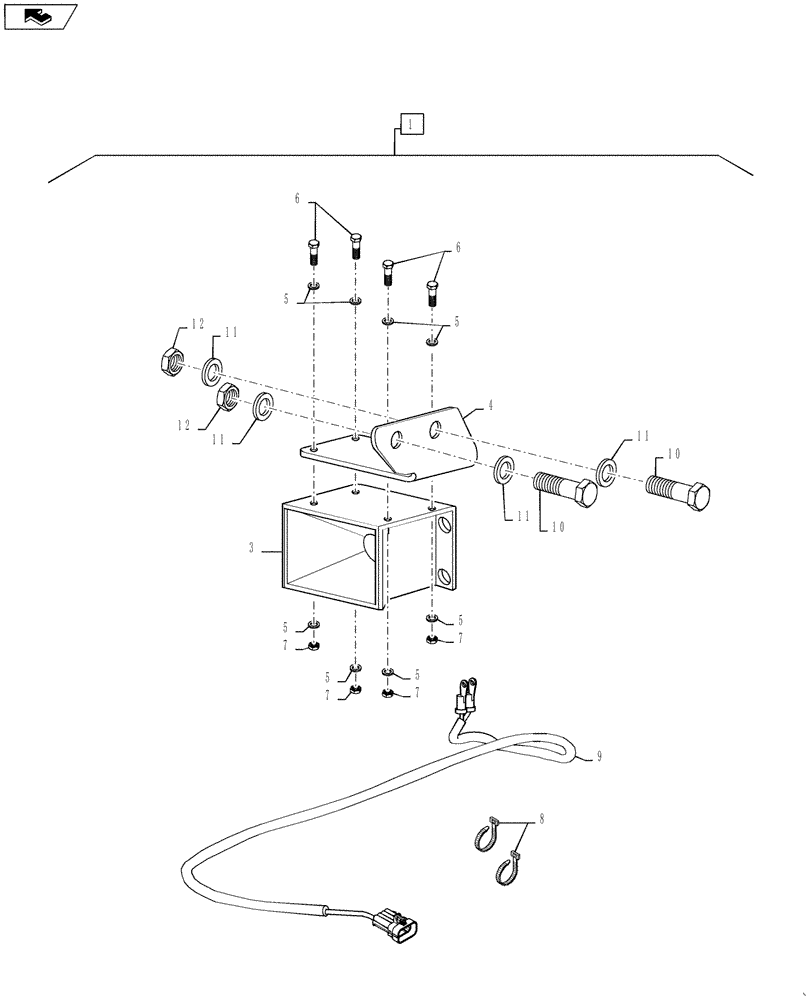

Запчасти Case IH STEIGER 400 (88.055.06) - DIA KIT, ADDITIONAL PRODUCTS - BACKUP ALARM KIT (88) - ACCESSORIES

1

84299370

KIT

DIA Kit - BACKUP ALARM - Incl 2 - 15

1шт.

2

84299374

INSTRUCTION

Installation (Not Shown)

1шт.

3

D121972

ALARM

BACK-UP

1шт.

4

84195225

BRACKET

BACKUP ALARM

1шт.

5

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

8шт.

6

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.

9

391364A1

HARNESS

BACKUP ALARM

1шт.

10

87022684

BOLT,Hex, M12 x 45mm, Cl 10.9

Model Yr. 2011 and After

2шт.

10

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

Model Yr. 2010 and Older

2шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Model Yr. 2011 and After

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Model Yr. 2010 and Older

4шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

Model Yr. 2011 and After

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

Model Yr. 2010 and Older

2шт.
