Запчасти Case IH STEIGER 400 (88.055.02) - DIA KIT, ADDITIONAL PRODUCTS - BATTERY DISCONNECT KIT (88) - ACCESSORIES

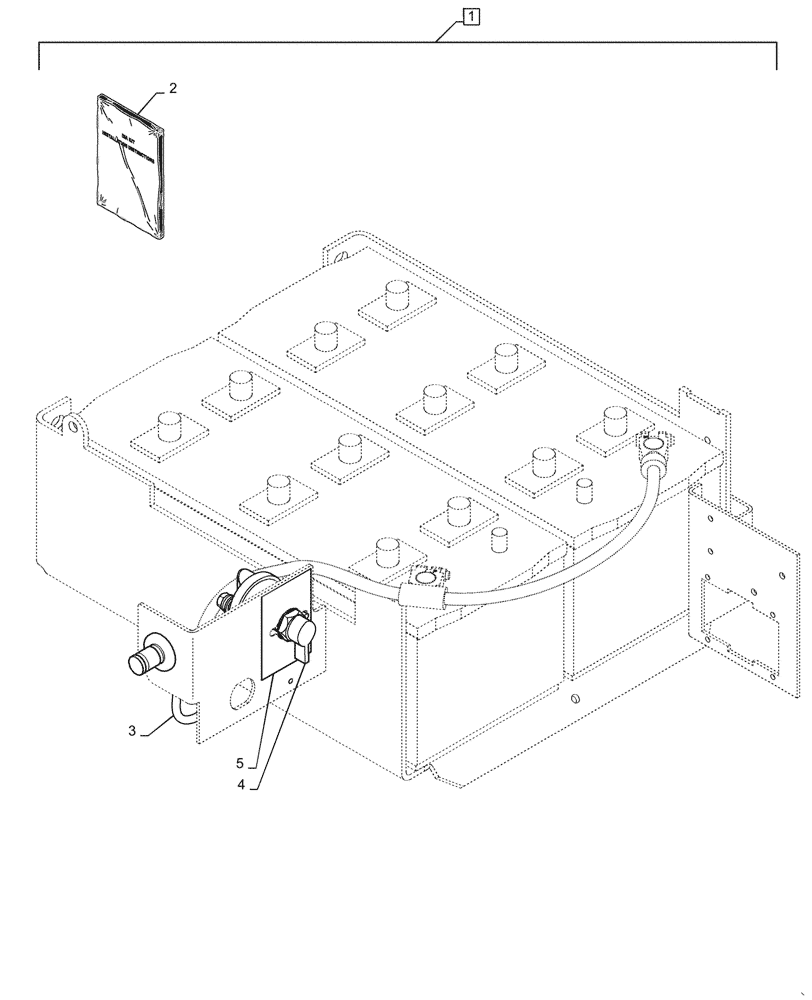

Схема запчастей Case IH STEIGER 400 - (88.055.02) - DIA KIT, ADDITIONAL PRODUCTS - BATTERY DISCONNECT KIT (88) - ACCESSORIES
5
2
1
4
3

Артикул

Название

Примечание

Количество

1

84303135

KIT

DIA Kit - BATTERY DISCONNECT - Incl 2 - 5

1шт.

2

84303140

INSTRUCTION

INSTALLATION (Not Shown)

1шт.

3

84199726

CABLE

CAB POWER DISCONNECT

1шт.

4

87458467

ROTARY SWITCH

MASTER DISCONNECT

1шт.

5

87583989

DECAL

BATTERY DISCONNECT

1шт.

Выбрано товаров: 5
