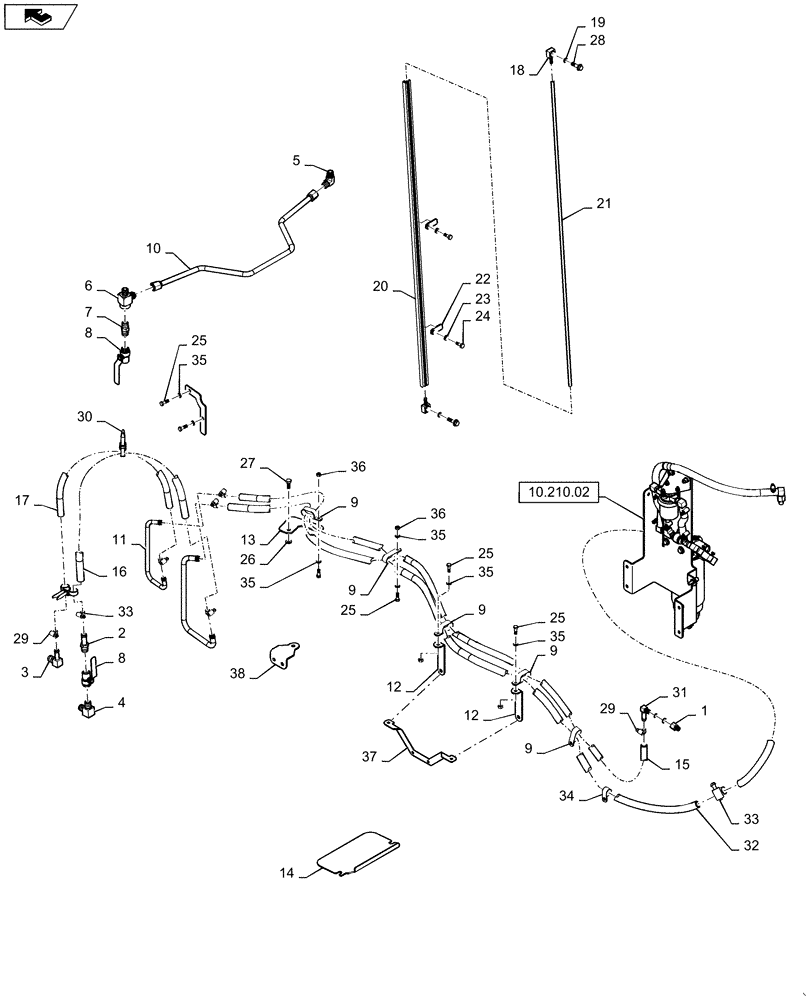

Запчасти Case IH STEIGER 400 (10.214.01[02]) - FUEL LINES - STEIGER 400- 450 (10) - ENGINE

1

86990397

FITTING

Male Metric / Female NPTF

1шт.

2

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

3

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

4

217-1226

ELBOW,90 Degree, 1/2"-14 Male

1шт.

5

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

1шт.

6

31-1000

TEE

.50 NPTF Male x .50 NPT Female x .63 Tube

1шт.

7

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

8

435446A1

SHUT-OFF VALVE,1/2"-14 NPTF, Ball Type

2шт.

9

R54363

CLAMP

Double

5шт.

10

84359547

TUBE

Fuel Crossover

1шт.

11

84197933

FUEL TUBE

Fuel Lines Hinge

1шт.

12

84306773

BRACKET, SUPPORTING

Fuel Line Support, Front - W/O Suspended Cab

2шт.

13

84306775

BRACKET, SUPPORTING

Fuel Line Support, Rear

1шт.

14

84216361

BRACKET, SUPPORTING

Cooler Hose Seal Support

1шт.

15

31-1730

HOSE

Fuel, 3048mm L (120.00 In)

1шт.

16

84365674

FUEL HOSE,15.9mm ID x 990.6mm L

Fuel, 991mm L (39.00 In)

1шт.

17

8500164

HOSE

Fuel

1шт.

18

352767A1

FITTING

Fuel Sight Gauge

2шт.

19

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

20

84197976

CHANNEL

Fuel Sight Gauge

1шт.

21

337240A1

FUEL HOSE,6.35 mm ID x 1206.00 mm

1шт.

22

402800A1

BRACKET

Fuel Sight Gauge

2шт.

23

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

24

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

26

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

27

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

28

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

29

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

30

327144A1

STRAP,328mm L

2шт.

31

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

1шт.

32

31-2996

FUEL HOSE

Fuel, 3429mm (135.00 In)

1шт.

33

214-1408

HOSE CLAMP,11.2mm - 19.8mm

12шт.

34

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

14шт.

36

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

37

84378990

BRACKET

Hose Routing Support - Suspended Cab Only

1шт.

38

84379091

BRACKET

Bracket, Hose Clamp - W/O Suspended Cab

1шт.
