Запчасти Case IH STEIGER 400 (88.039.02) - DIA KIT, ADDITIONAL PRODUCTS - FRONT BUMPER KIT (RC) (88) - ACCESSORIES

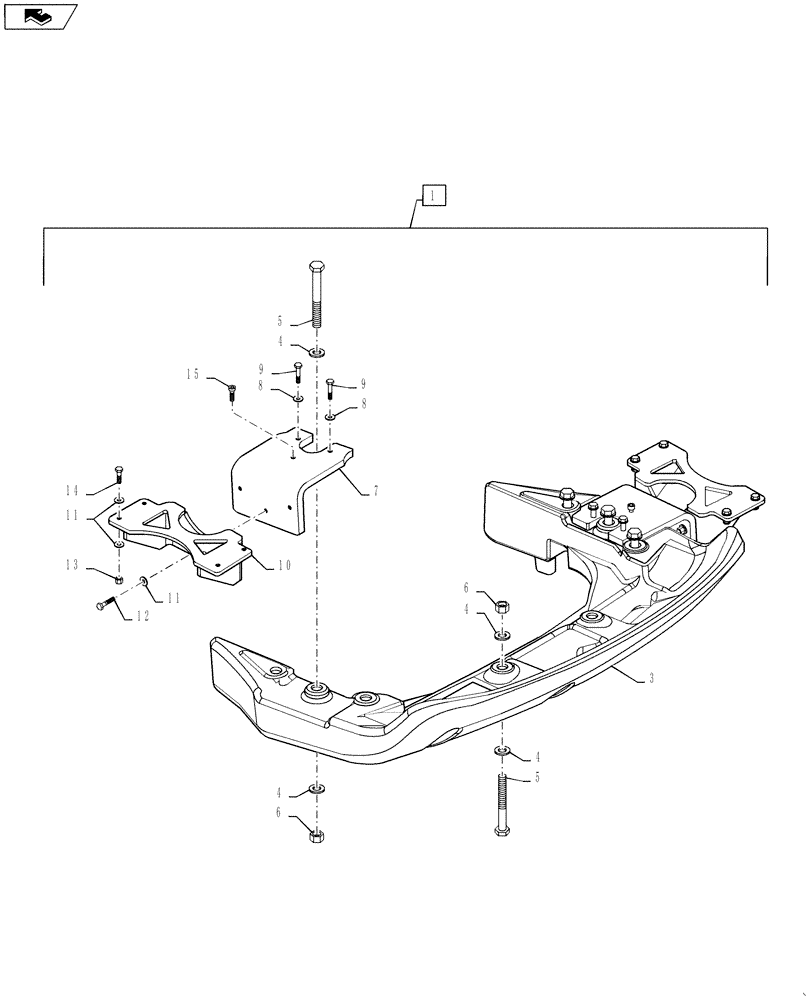

Схема запчастей Case IH STEIGER 400 - (88.039.02) - DIA KIT, ADDITIONAL PRODUCTS - FRONT BUMPER KIT (RC) (88) - ACCESSORIES
3
10
9
4
7
5
11
6
4
6
9
1
14
4
13
5
home
15
11
12
4
8
8

Артикул

Название

Примечание

Количество

1

84312308

KIT

DIA Kit - Front Bumper Kit

1шт.

2

84308063

INSTRUCTION

INSTALLATION (Not Shown)

1шт.

3

84206442

BALLAST

FRONT

1шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

16шт.

5

827-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

8шт.

6

829-1420

NUT,M20, Cl 10

8шт.

7

84210255

BRACKET, SUPPORTING

STORAGE BOX

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

10

84187148

BRACKET

STORAGE BOX

2шт.

11

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

12

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

6шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

14шт.

14

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

15

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

2шт.

16

345-75

SEALANT

ADHESIVE (Not Shown)

1шт.

Выбрано товаров: 16
