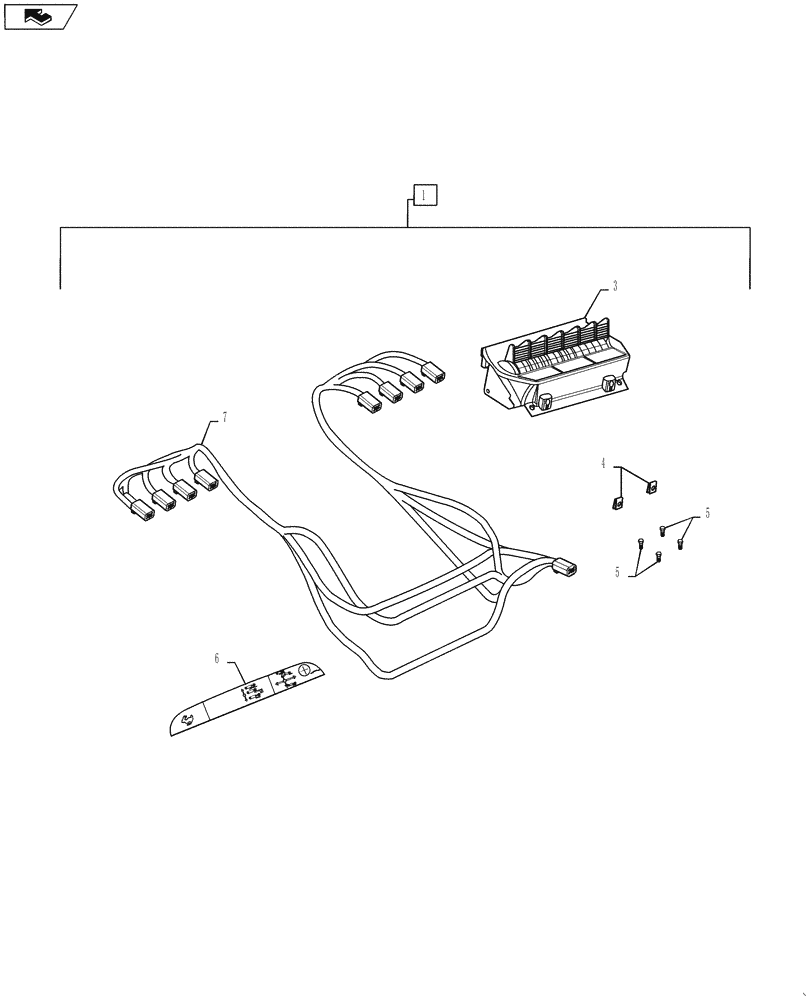

Запчасти Case IH STEIGER 400 (88.035.10) - DIA KIT, ADDITIONAL PRODUCTS - 6 SPOOL HYD. REMOTES (88) - ACCESSORIES

1

84330953

KIT

DIA Kit, 6 Spool Remotes - Incl 2 - 13

1шт.

2

84319337

INSTRUCTION

Installation (Not Shown)

1шт.

3

84235842

SET OF LEVERS

Assy., 6 EHR; Incl Wire Harnesses, NSS

1шт.

4

84148337

SPRING NUT

Spring, 4.8

5шт.

5

13276421

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 8.8, Full Thd

2шт.

6

84126455

DECAL

EHR, 6 Lever

1шт.

7

84158327

WIRE HARNESS

EHR Valves, 8 Spool

1шт.

8

PL

PROCURE LOCALLY

Nylon Tie, 15 In. (Not Shown)

6шт.

9

435437A1

CABLE TIE,3/16" x 7 1/4"

(Not Shown)

1шт.

10

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

(Not Shown)

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

(Not Shown)

4шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

(Not Shown)

2шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

(Not Shown)

2шт.
