(10.206.02[02]) - FUEL FILTER/WATER SEPARATOR - PRE- FUEL FILTER - STEIGER 400 & 450

Запчасти Case IH STEIGER 400 (10.206.02[02]) - FUEL FILTER/WATER SEPARATOR - PRE- FUEL FILTER - STEIGER 400 & 450 (10) - ENGINE

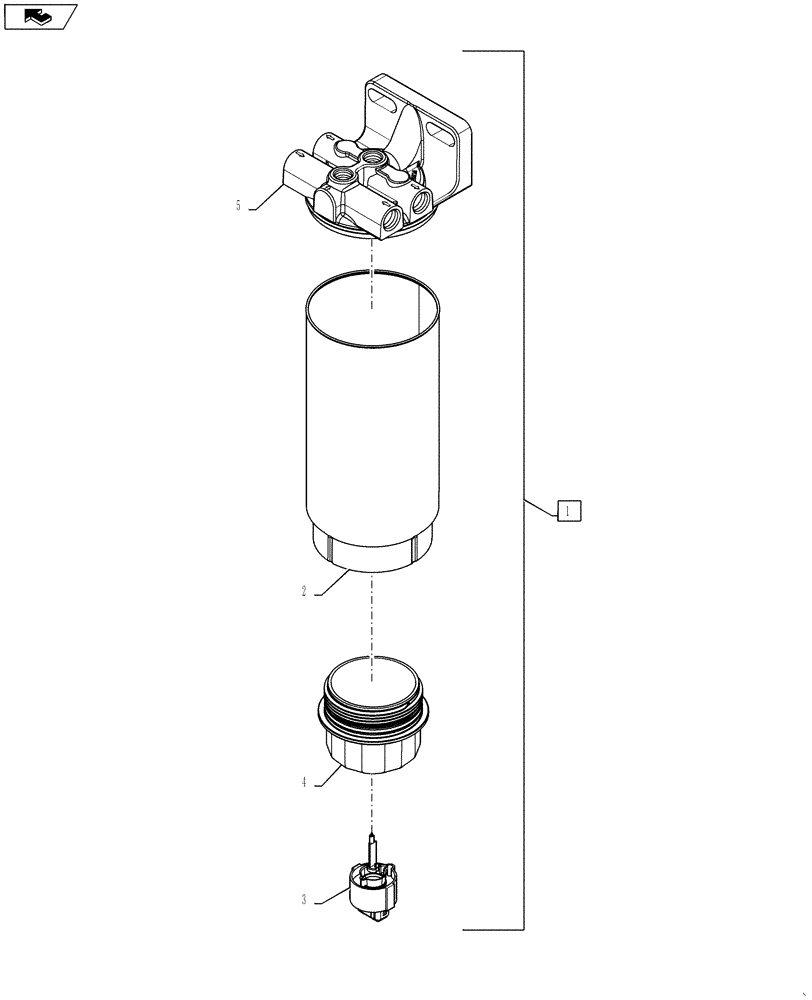

Схема запчастей Case IH STEIGER 400 - (10.206.02[02]) - FUEL FILTER/WATER SEPARATOR - PRE- FUEL FILTER - STEIGER 400 & 450 (10) - ENGINE
1
home
5
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84322789

FUEL FILTER

Assembly, W/ WIF Sensor, Incl 2 - 5

1шт.

2

84303715

FUEL FILTER

Element, Pre- Fuel Filter, (Located on Frame)

1шт.

3

84417009

SENSOR

Water-In-Fuel

1шт.

4

84417002

FILTER BOWL

Water Collection Bowl

1шт.

5

NSS

NOT SOLD SEPARAT

FILTER HEAD, Incl In 1

1шт.
