Запчасти Case IH STEIGER 400 (55.510.01[01]) - CAB - MAIN ELECTRICAL (55) - ELECTRICAL SYSTEMS

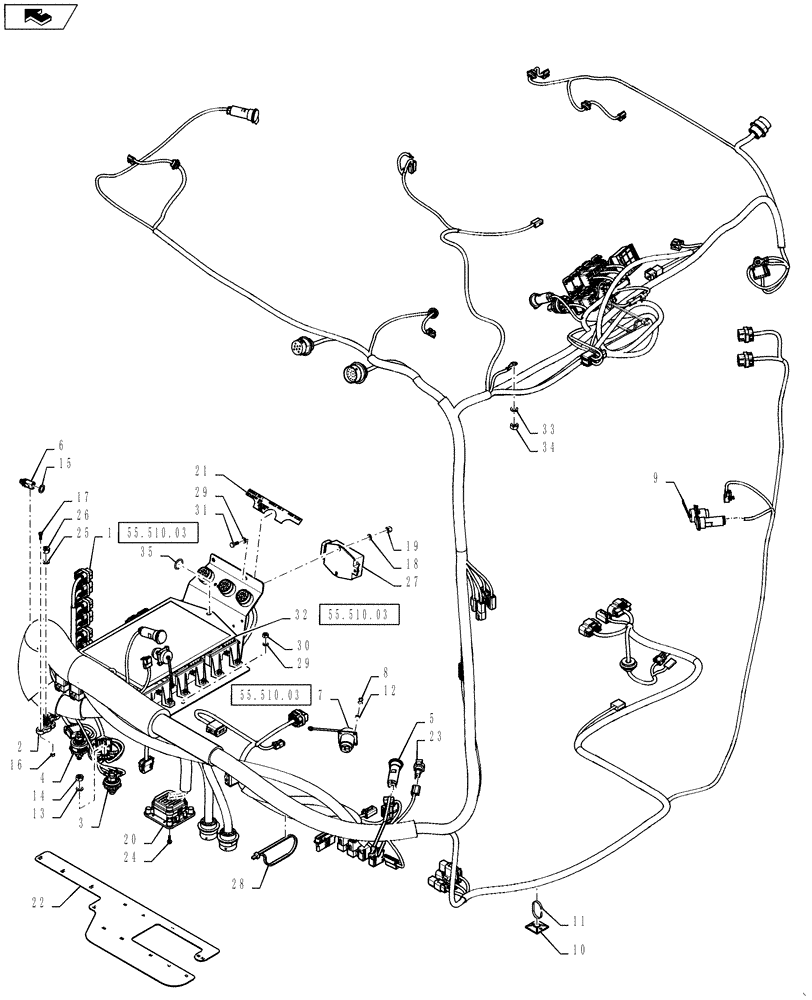

Схема запчастей Case IH STEIGER 400 - (55.510.01[01]) - CAB - MAIN ELECTRICAL (55) - ELECTRICAL SYSTEMS
23
24
26
22
14
home
13
25
27
21
18
8
10
6
19
11
16
32
9
1
7
31
15
30
29
5
33
34
35
55.510.03
55.510.03
55.510.03
17
29
3
12
28
20
4
2

Артикул

Название

Примечание

Количество

1

84311775

HARNESS

With Fuses And Relays, North America

1шт.

1

84311783

HARNESS

With Fuses And Relays, Europe

1шт.

84490475

WIRE HARNESS

With Fuses And Relays, Homologation

1шт.

2

20-1451T1

BLOCK

Junction

1шт.

3

311430A1

BLOCK

Junction

1шт.

4

190158A1

BLOCK

Junction

1шт.

5

388813A1

OUTLET

Power

4шт.

6

87541092

SWITCH

Dome Lamp

1шт.

7

227739A2

POWER SOCKET

Harness, Aux Power

3шт.

8

383986A1

RIVET

3.3 X 11.7 Break Mandrel

12шт.

9

87452321

OUTLET

Power

1шт.

10

435436A1

RUBBER MOUNTING

Adhesive Backed

5шт.

11

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

12шт.

12

895-11003

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

12шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

15

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

1шт.

16

824-1405

NUT,M5, Cl 5

2шт.

17

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

18

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

3шт.

19

832-10404

NUT,M4 x 0.7, Cl 8.8

3шт.

20

87539920

TERMINAL CONNECTOR

Bulkhead Mounting Flange

1шт.

21

84214587

DECAL

Service Tool Connector ID

1шт.

22

87733238

DECAL

Main Electronics Assembly

1шт.

23

300655A1

POWER SOCKET

1шт.

24

87484780

SCREW,#10 - 14 x 5/8"

#10-14 X 5/8" Plastite

4шт.

25

892-11010

LOCK WASHER,M10

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

84414345

FLASHER UNIT

North America

1шт.

27

87577636

FLASHER UNIT

Europe / Homologation

1шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

14шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

30

832-10406

NUT,M6 x 1, Cl 8

1шт.

31

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

32

84377895

DECAL

Card, Cab Fuse/Relay, North America

1шт.

32

84379775

DECAL

Card, Cab Fuse/Relay, Europe

1шт.

33

892-11008

LOCK WASHER,8mm ID

1шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

35

87346315

CLASP

TETHER, Looper With Coil

1шт.

36

388810A1

ELEMENT

Pop-Out, Use With Ref. 9 (Not Shown)

1шт.

Выбрано товаров: 40
