Запчасти Case IH STEIGER 400 (55.418.02) - GROUND SPEED RADAR (55) - ELECTRICAL SYSTEMS

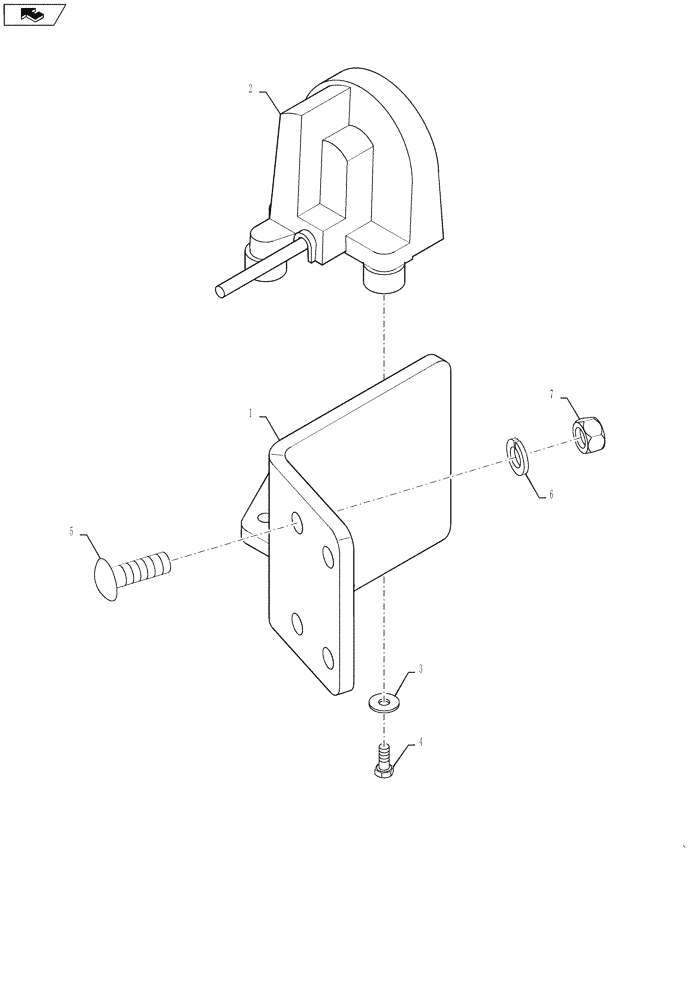

Схема запчастей Case IH STEIGER 400 - (55.418.02) - GROUND SPEED RADAR (55) - ELECTRICAL SYSTEMS
4
6
1
5
3
7
home
2

Артикул

Название

Примечание

Количество

1

84243107

BRACKET, SUPPORTING

Bracket, Ground Speed Radar Support

1шт.

2

87733890

SENSOR

True Ground Speed - N/A

1шт.

2

87733890R

REMAN-SENSOR

STEIGER 350, STEIGER 400, STEIGER 450, All 4WD TRACTOR, True Ground Speed - N/A (12/10-)

1шт.

2

87733890C

CORE-SENSOR

Return Number

1шт.

2

84225080

SENSOR

True Ground Speed - EURO

1шт.

3

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

4

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

3шт.

5

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

4шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

7

337475

NUT,M12, Cl 10

4шт.

Выбрано товаров: 10
