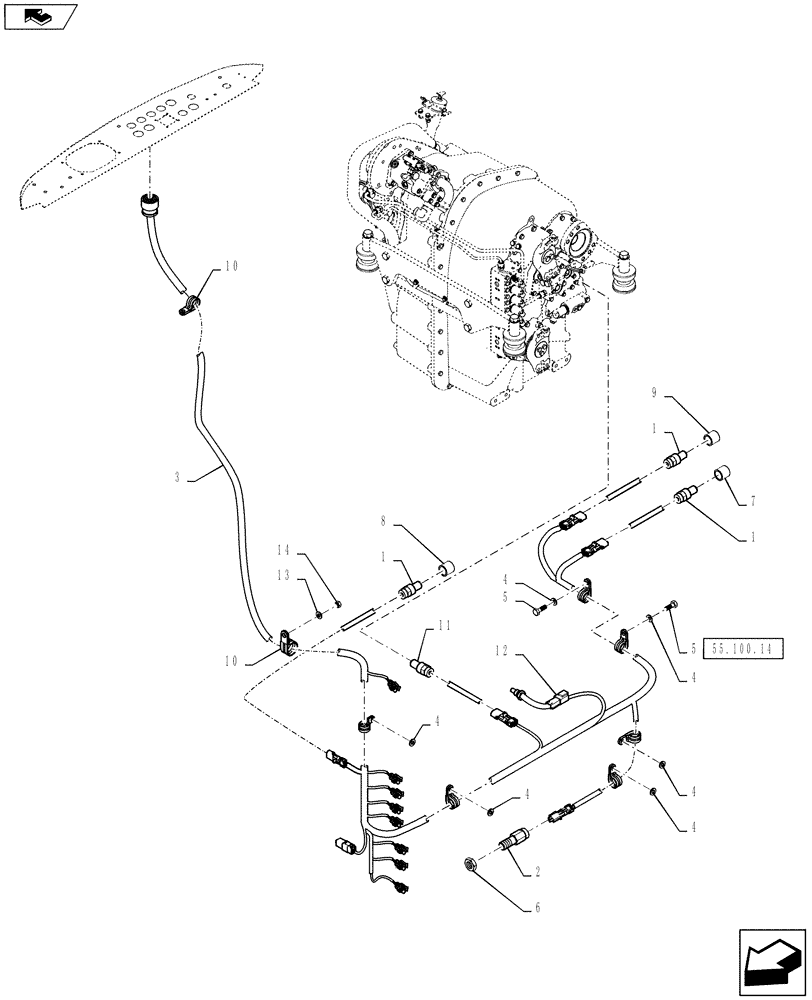

Запчасти Case IH STEIGER 400 (55.414.01) - HARNESS - TRANSMISSION LAYOUT (55) - ELECTRICAL SYSTEMS

1

87449451

SENSOR

Variable Speed

1шт.

2

A186004

SENSOR

Speed

1шт.

3

84195943

WIRE HARNESS

Transmission

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

6

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

7

84233293

SPACER,20.5mm ID x 28.5mm OD x 14.4mm W

14.389mm, Speed Sensor

1шт.

8

87351748

SPACER,20.5mm ID x 28.5mm OD x 15.22mm W

15.217mm, Speed Sensor

1шт.

9

87351750

SPACER,20.5mm ID x 28.5mm OD x 29.39mm W

29.385mm, Speed Sensor

1шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

11

86987513

SENSOR

PWM Transmission Pressure Sensor

1шт.

12

87521424

TEMPERATURE SENDER

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.
