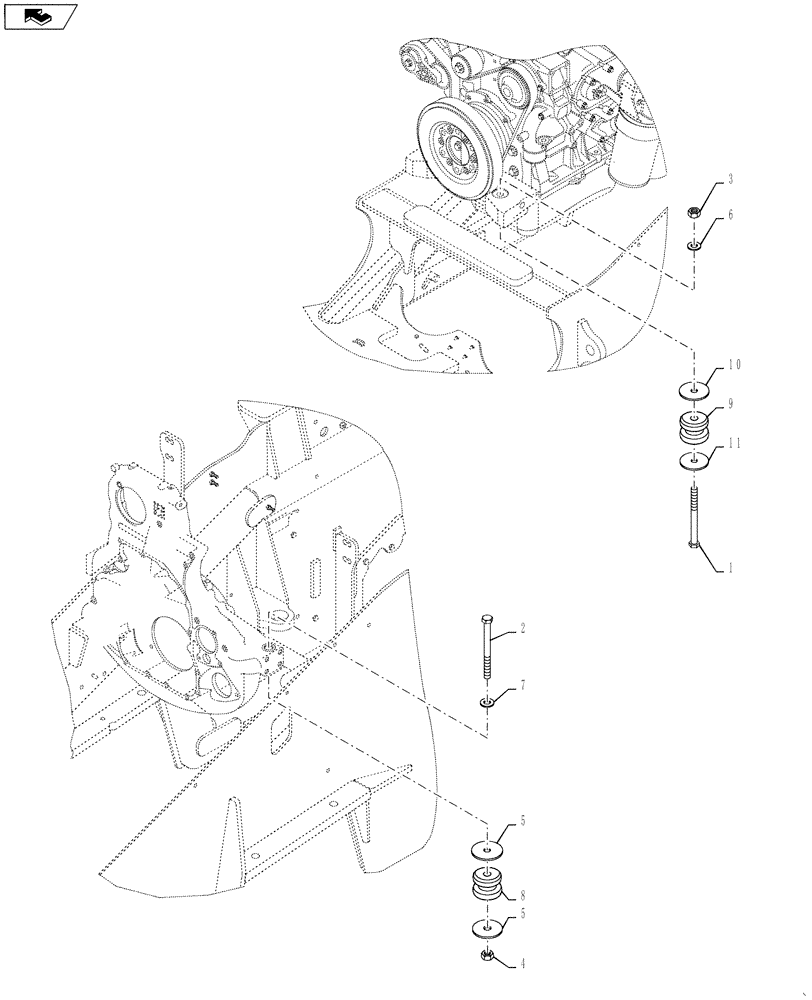

Запчасти Case IH STEIGER 400 (10.012.02) - ENGINE MOUNTING - STEIGER 400-450 (10) - ENGINE

1

435439A1

RUBBER MOUNTING

Frnt. Engine Mount

2шт.

2

87015582

BOLT,Hex, M16 x 160mm, Cl 10.9

2шт.

3

86637662

WASHER,0.66" ID x 2.5" OD x 0.18" Thk

2шт.

4

51-128

WASHER

.656 x 3.50 x .187 Zinc

4шт.

5

86624156

WASHER,0.66" ID x 1.5" OD x 0.19" Thk

2шт.

6

412066

NUT,M16 x 2.0, Cl 8

Lock

2шт.

7

361187A1

ISOLATOR

Transmission Bracket

2шт.

8

87015584

BOLT,Hex, M20 x 220mm, Cl 10.9

2шт.

9

86639847

WASHER,21.8mm ID x 44.5mm OD x 5mm Thk

2шт.

10

379611A1

WASHER

Transmission Mount

4шт.

11

412180

NUT,M20 x 2.5, Cl 8

4шт.
