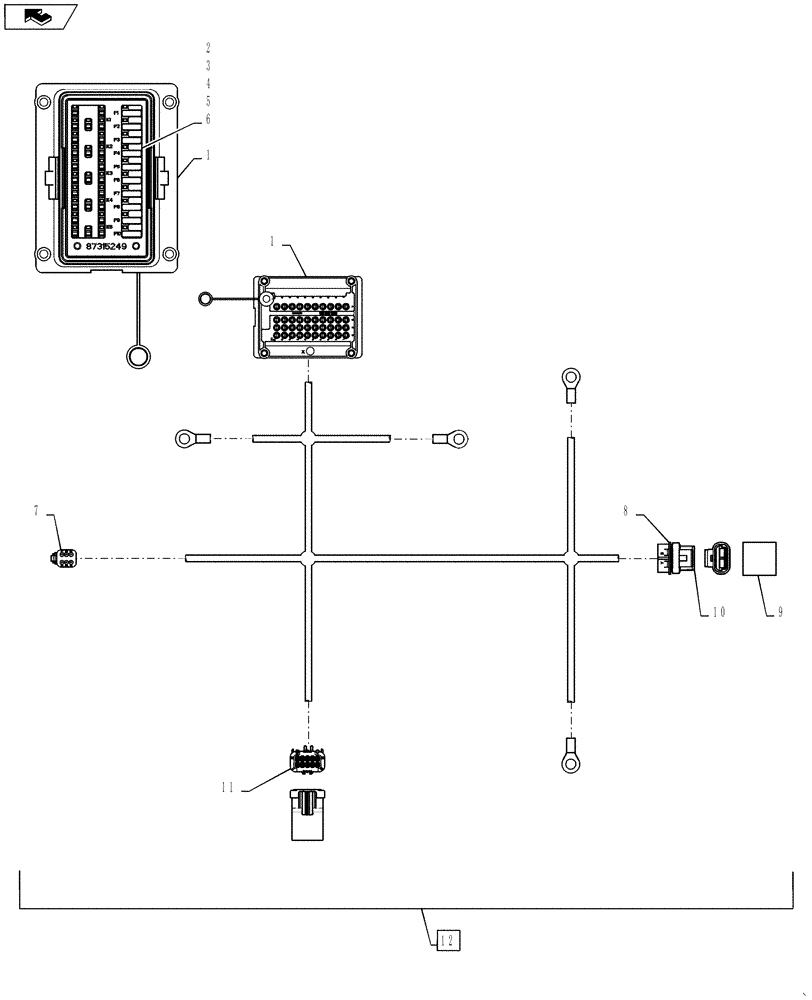

Запчасти Case IH STEIGER 400 (55.100.35) - HARNESS - BATTERY EQUALIZER, SCR, 24V SYSTEM (55) - ELECTRICAL SYSTEMS

1

87315249

FUSE BOX

- Relay Box - See item 13 for service

1шт.

2

121414A1

FUSE,20A, Mini, Yellow

1шт.

3

121410A1

FUSE,5A, Mini, Tan

1шт.

4

121412A1

FUSE,10A, Mini, Red

1шт.

5

121413A1

FUSE,15A, Mini, Blue

1шт.

6

87655334

RELAY,12V, 35A, Micro

1шт.

7

225351C1

ELEC CONNECTOR,Female, 6 Pin

To Battery Equalizer

1шт.

8

NSS

NOT SOLD SEPARAT

Fuse Holder - Parckard P/N 12085030 - Incl with item 12

1шт.

9

NSS

NOT SOLD SEPARAT

Fuse Holder Cover - Parckard P/N 12146104 - Incl with item 12

1шт.

10

A149804

FUSE

30A

1шт.

11

87382923

ELEC CONNECTOR,Male, 10 Cavities

To Front Frame Harness

1шт.

12

84349587

HARNESS

24 V System - Inc. items 1 thru 11

1шт.

13

84379839

FOAM

Foam, RTMR Box Cover (Not Shown)

1шт.
