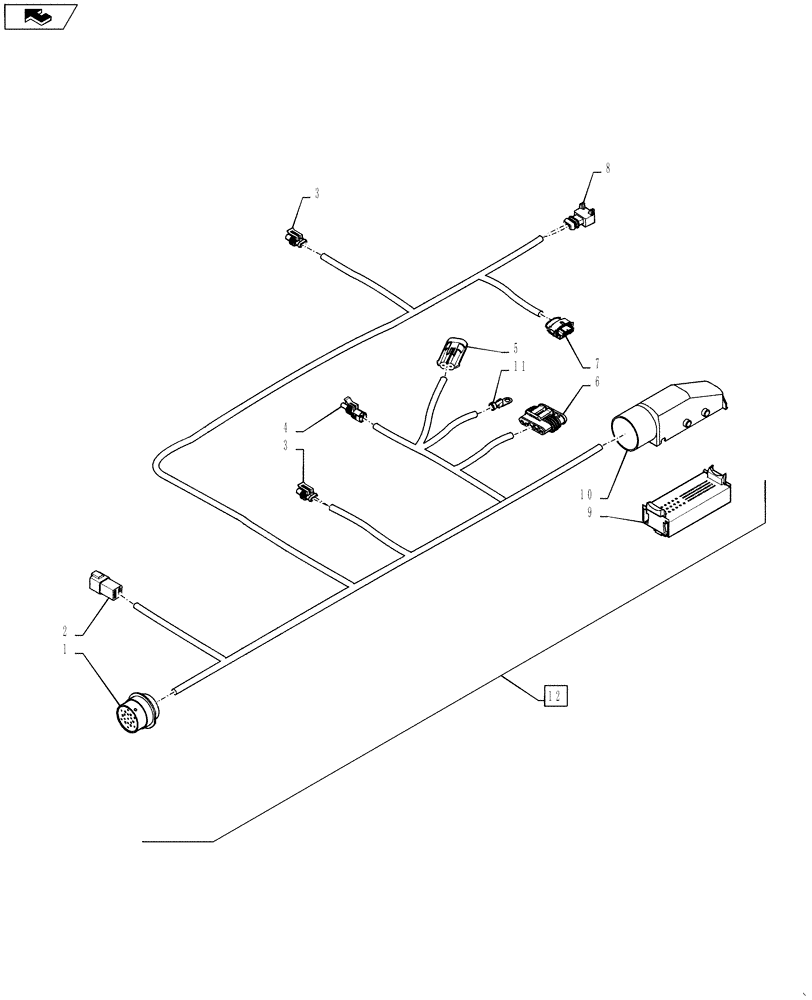

Запчасти Case IH STEIGER 400 (55.100.02[02]) - HARNESS - ENGINE - 13L RC ENGINE - STEIGER 400 - 450 (55) - ELECTRICAL SYSTEMS

1

87703918

TERMINAL CONNECTOR

21 Pin Connector (C100M)

1шт.

2

225350C1

ELEC CONNECTOR,Male, 6 Pin

6 Pin, To Front Frame Harness (C150F)

1шт.

3

371614A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, Grid Heater Relay/Fuel Filter Restriction SW (C173)

2шт.

4

245480C1

ELEC CONNECTOR,1 Pin

(C174)

1шт.

5

292549A1

CONNECTOR, ELEC

2 Pin, A/C High Pressure SW (C175)

1шт.

6

87688719

ELEC CONNECTOR,Female, 5 Cavities

5 Pin, Vistronic Fan (C152)

1шт.

7

87709809

ELEC CONNECTOR

4 Pin, Temp/Humidity Sensor (C151)

1шт.

8

291718A1

ELEC CONNECTOR,Female, 2 Pin

2 Pin, Air Filter Restriction SW (C179)

1шт.

9

8602412

CONTACT

Housing, 89 Pin (C176)

1шт.

10

8602413

COVER

For item 9

1шт.

11

PL

PROCURE LOCALLY

Ring Terminal, M5 Stud, To Alternator D terminal (C177)

1шт.

12

84392265

WIRE HARNESS

Engine, 13L Single Stage, Incl 1 - 10

1шт.
