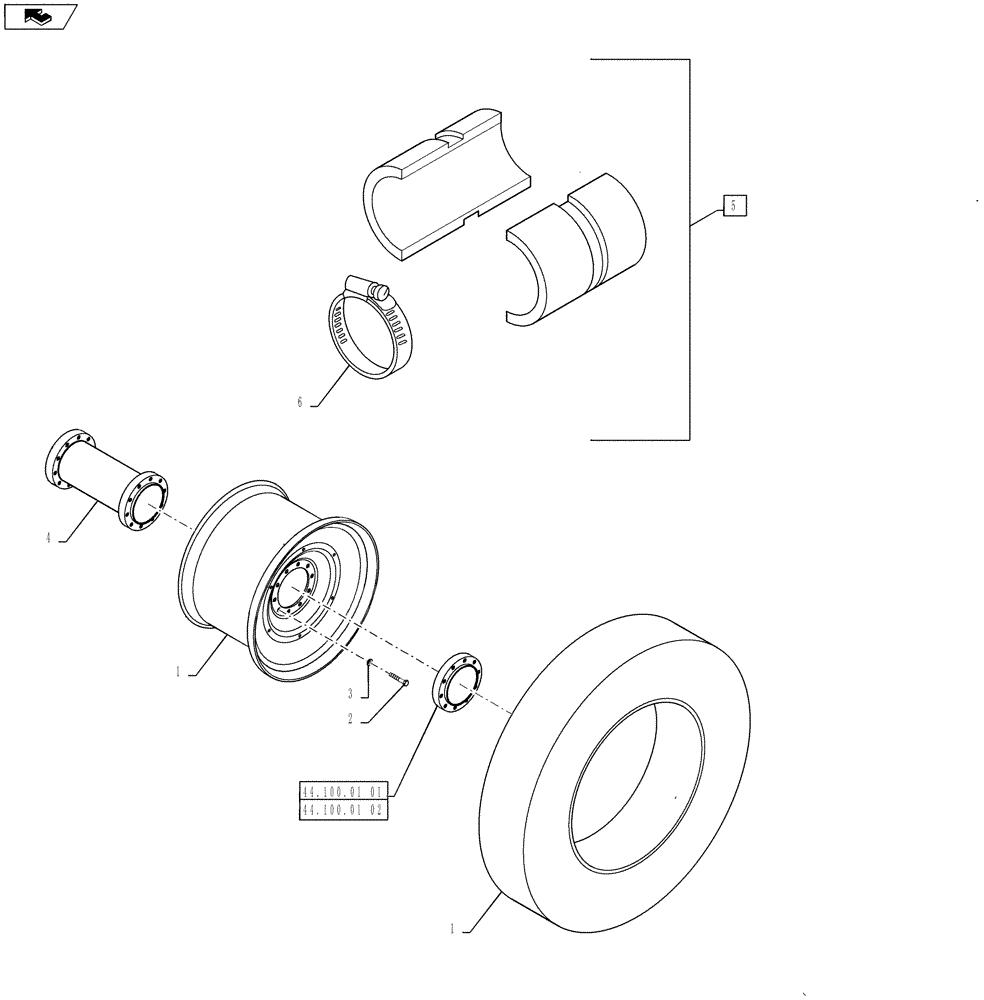

Запчасти Case IH STEIGER 400 (44.511.03) - WHEEL - TRIPLE (44) - WHEELS

1

87662471

WHEEL ASSY

WH18A x 42, For Tires: 520/85R42, 20.8R42, Use Outer Wheel 28 Spacer and 63 mm Articulation Stop

12шт.

Use 245 mm Articulation Lock Assembly, See Figure 05.102.01

1шт.

1

396114A1

RIM

DW15L x 50, For Tires: 480/80R50, Use Outer Wheel 28 Spacer and 63 mm Articulation Stop

12шт.

Use 245 mm Articulation Lock Assembly, See Figure 05.102.01

1шт.

1

326630A1

WHEEL

W12 x 54, For Tires: 380/90R54

12шт.

Use 245 mm Articulation Lock Assembly, See Figure 05.102.01

1шт.

2

86639172

BOLT,Hex, M22 x 140mm, Cl 10.9

40шт.

3

76088905

WASHER,24mm ID x 44mm OD x 4mm Thk

M22 x 44 x 4, HT

40шт.

4

409987A1

SPACER

28, 10 Bolt

4шт.

5

84361080

STOP

Articulation, 63 mm, Contains Ref. 6

1шт.

6

13001290

HOSE CLAMP,90mm - 110mm, Worm Gear

90 x 110 mm

1шт.
