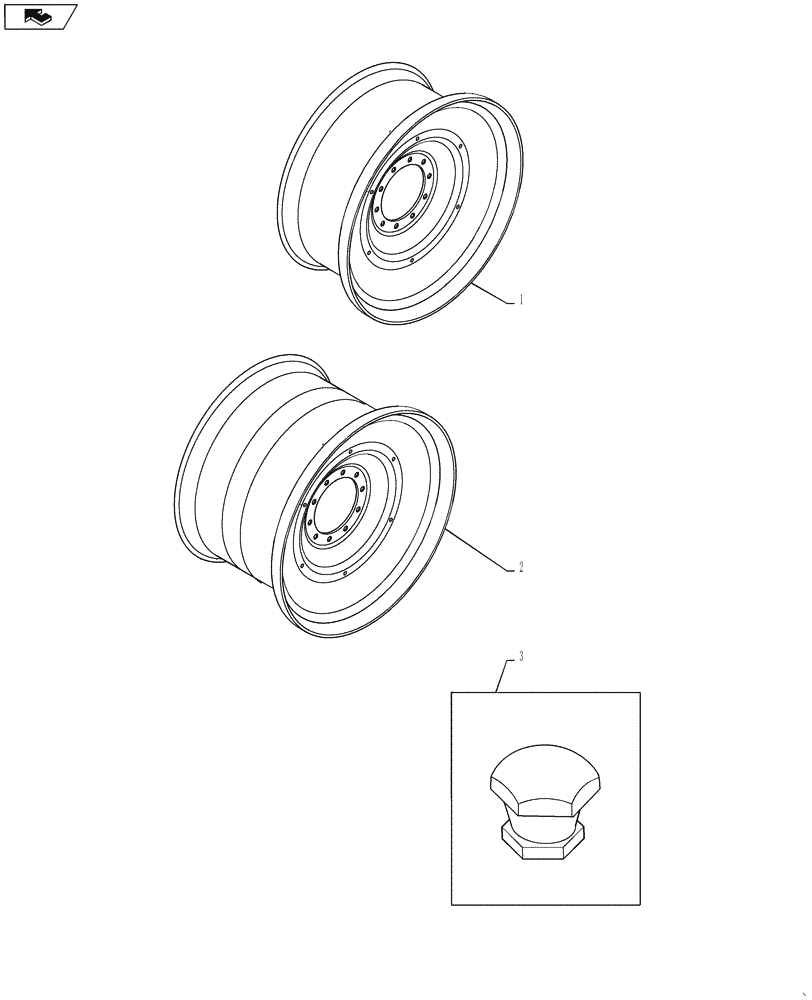

Запчасти Case IH STEIGER 400 (44.511.01[01]) - WHEEL - SINGLE (44) - WHEELS

1

87756404

WHEEL ASSY

FDW20B x 42, For Tires: 620/70R42

4шт.

1

87756406

WHEEL ASSY

FDW23B x 42, For Tires: 710/70R42

4шт.

1

87756408

WHEEL ASSY

FDW25B x 42, For Tires: IF710/70R42

4шт.

1

87662471

WHEEL ASSY

WH18A x 42, For Tires: 520/85R42, 20.8R42

4шт.

Use 216 mm Articulation Lock Assembly, See Figure 05.102.01

1шт.

1

87756401

WHEEL ASSY

MW23A x 38 (Dual Hub), For Tires: IF650/85R38

4шт.

1

87756399

WHEEL ASSY

MW27B x 38 (Dual Hub), For Tires: IF800/70R38

4шт.

1

87756410

WHEEL ASSY

FDW28B x 42, For Tires: 900/50R42

4шт.

1

87312787

WHEEL

DWM44 x 32 (2.05 Outset) For Tire:76 x50-32

4шт.

Requires items 4 thru 9,Steiger 450

1шт.

2

193273A1

WHEEL

DW27TB x 32, For Tires: 30.5L-32

4шт.

2

87603317

WHEEL

MW27B x 38, For Tires: IF710/70R38, 850/60-38

4шт.

2

403037A1

RIM

MW25A x 38, For Tires: 800/70R38

4шт.

Use 202 mm Articulation Lock Assembly and 14 mm Stop. See Figure 05.102.01

1шт.

2

87620665

WHEEL

MW23A x 38 or MW23B x 38, For Tires: 650/85R38, IF650/85R38, 710/70R38

4шт.

3

87352762

PLUG

Rim Valve Hole

4шт.

4

87380074

KEY

Wheel

4шт.

5

38-11608

LOCK PIN,1/4" x 1/2", Slotted

4шт.

Steiger 450

1шт.

6

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

Steiger 450

1шт.

7

827-22080

BOLT,Hex, M22 x 2.5 x 80mm, Cl 10.9

40шт.

Steiger 450

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

64шт.

Steiger 450

1шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

64шт.

Steiger 450

1шт.

10

84203982

HUB

Hub Assy., 127mm Axle

4шт.

Steiger 450

1шт.
