Запчасти Case IH STEIGER 400 (44.100.01[02]) - HUB AND WHEEL MOUNTING - 127 MM BAR- DUAL & TRIPLE TIRE MOUNTING (44) - WHEELS

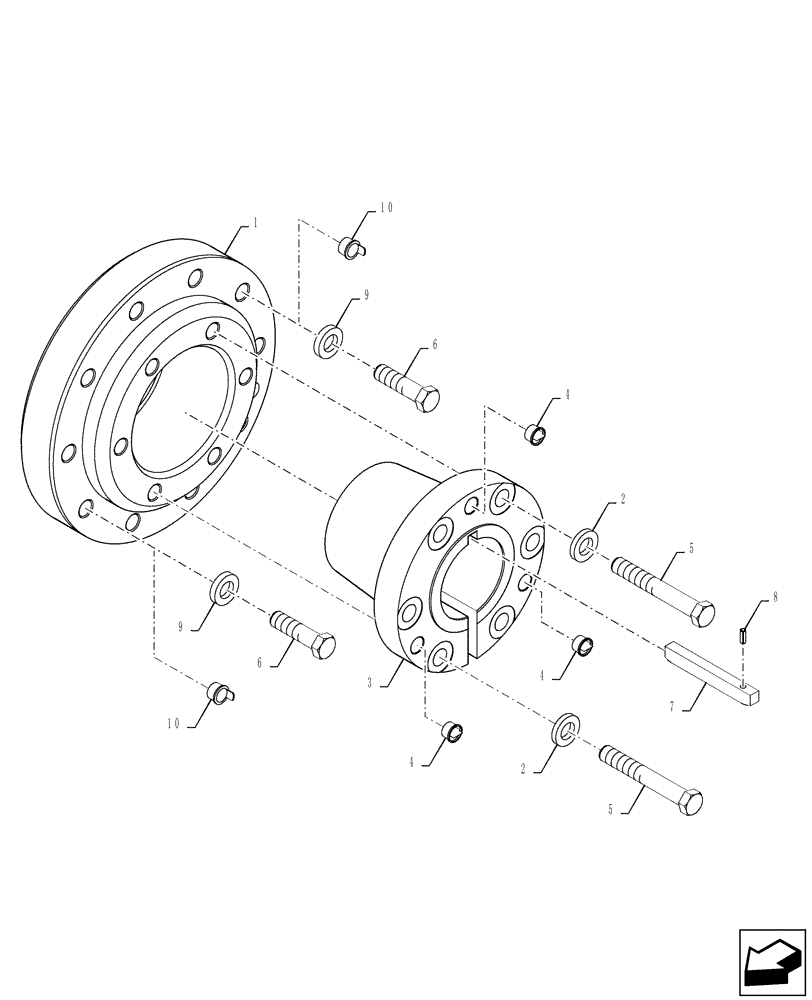

Схема запчастей Case IH STEIGER 400 - (44.100.01[02]) - HUB AND WHEEL MOUNTING - 127 MM BAR- DUAL & TRIPLE TIRE MOUNTING (44) - WHEELS
1
9
2
9
6
3
8
5
10
4
5
7
2
4
6
home
10
4

Артикул

Название

Примечание

Количество

1

405812A1

HUB

Wheel (Bi-directional)

1шт.

2

86637816

WASHER,0.81" ID x 1.5" OD x 0.22" Thk

6шт.

3

84198516

BUSHING

1шт.

4

303401A1

PLUG

Bushing Jackbolt

3шт.

5

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

6

87670757

BOLT,Hex, M22 x 80mm, Cl 10.9

40шт.

7

A63219

KEY

Rear Wheel To Axle

4шт.

8

86977782

LOCK PIN,6.35mm OD x 12.7mm L

4шт.

9

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

40шт.

10

87424223

CAP,Tpr, 26.42mm Dia x 17.27mm L, Plastic, Blk

Plugs Shall Be Installed In all Dual Hub Wheel Bolt Holes.

40шт.

Выбрано товаров: 10
