Запчасти Case IH STEIGER 400 (35.304.01) - PUMP - AXLE MAIN CHARGE (35) - HYDRAULIC SYSTEMS

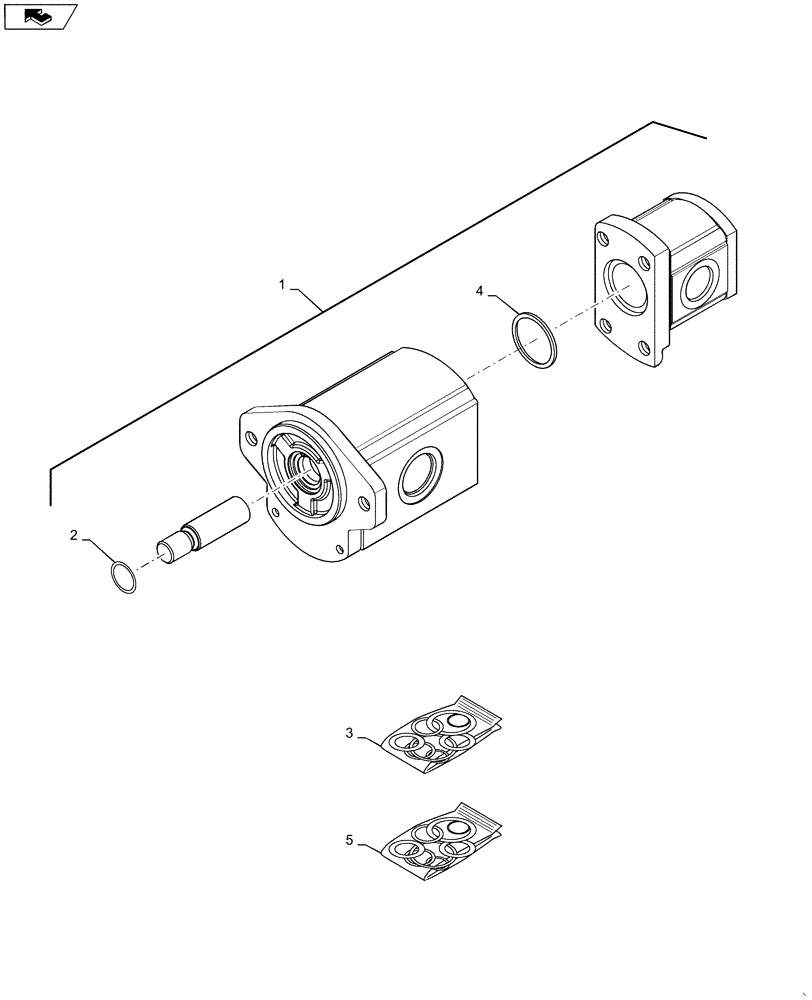

Схема запчастей Case IH STEIGER 400 - (35.304.01) - PUMP - AXLE MAIN CHARGE (35) - HYDRAULIC SYSTEMS
2
5
3
1
home
4

Артикул

Название

Примечание

Количество

1

84130469

HYDRAULIC PUMP,110 CC

Axle, Main Charge - Incl 2, 4

1шт.

1

84130469R

REMAN-HYD PUMP

Axle, Main Charge

1шт.

1

84130469C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

84332623

SHAFT SEAL

Font Pump

1шт.

3

84332625

SEAL KIT

Front Pump Seal

1шт.

4

84332626

SEAL

O-Ring, Rear Pump

1шт.

5

84332632

KIT

Rear Pump Seal

1шт.

Выбрано товаров: 7
