Запчасти Case IH STEIGER 400 (35.300.03[02]) - HIGH CAPACITY PUMP & HOSES - POWERSHIFT TRANS RC (35) - HYDRAULIC SYSTEMS

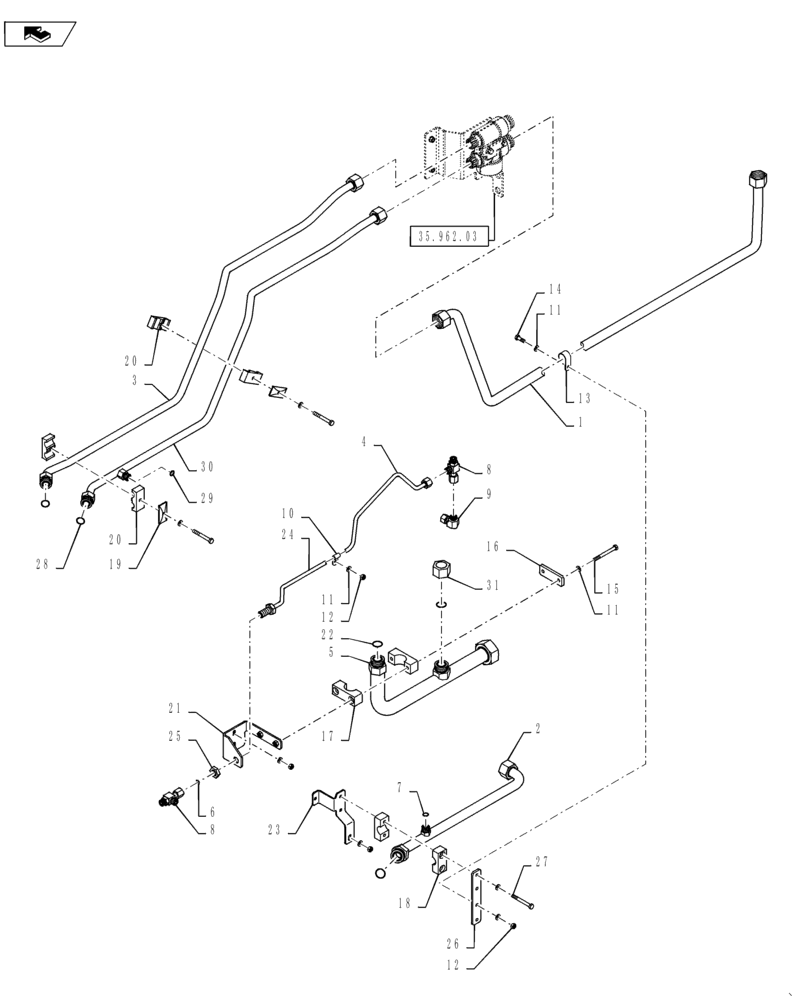

Схема запчастей Case IH STEIGER 400 - (35.300.03[02]) - HIGH CAPACITY PUMP & HOSES - POWERSHIFT TRANS RC (35) - HYDRAULIC SYSTEMS
15
16
6
24
11
8
home
12
21
18
20
25
8
9
14
23
13
22
28
10
27
17
2
5
12
11
1
11
7
35.962.03
31
26
4
3
20
29
19
30

Артикул

Название

Примечание

Количество

1

84180138

HYD TUBE

Charge Pressure, Manifold to Filter

1шт.

2

84180136

HYD TUBE

High pressure to Priority Valve

1шт.

3

84180142

HYD TUBE

Pump to Cooler

1шт.

4

84180126

HYD TUBE

Load sense, Shuttle to Shuttle

1шт.

5

84180134

HYD TUBE

Filter Out Hydraulic Suction Hose

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

300209A1

VALVE

2шт.

9

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

10

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

15

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

16

8500858

PLATE

Clamp Cover

1шт.

17

8500621

BLOCK

Tube Mounting

1шт.

18

367489A1

BLOCK

Tube Mounting

1шт.

19

50-2533T1

PLATE

Cover

2шт.

20

50-2551T1

CLAMP

Tube

4шт.

21

84180072

BRACKET

Tube Support, Hydraulic Return

1шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

23

84180078

BRACKET

Tube Support, Hydraulic Charge Pressure

1шт.

24

84194708

VALVE BODY

Cooler Bypass

1шт.

25

701-909

NUT,11/16" - 16

1шт.

26

84180104

PLATE

Tube Clamp

1шт.

27

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

29

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

84180140

HYD TUBE

Cooler to Pump

1шт.

31

701-901

CAP,1-7/16" - 12

1шт.

Выбрано товаров: 31
