Запчасти Case IH STEIGER 400 (35.220.02) - REMOTE HOSE LAYOUT - REAR SECTION (35) - HYDRAULIC SYSTEMS

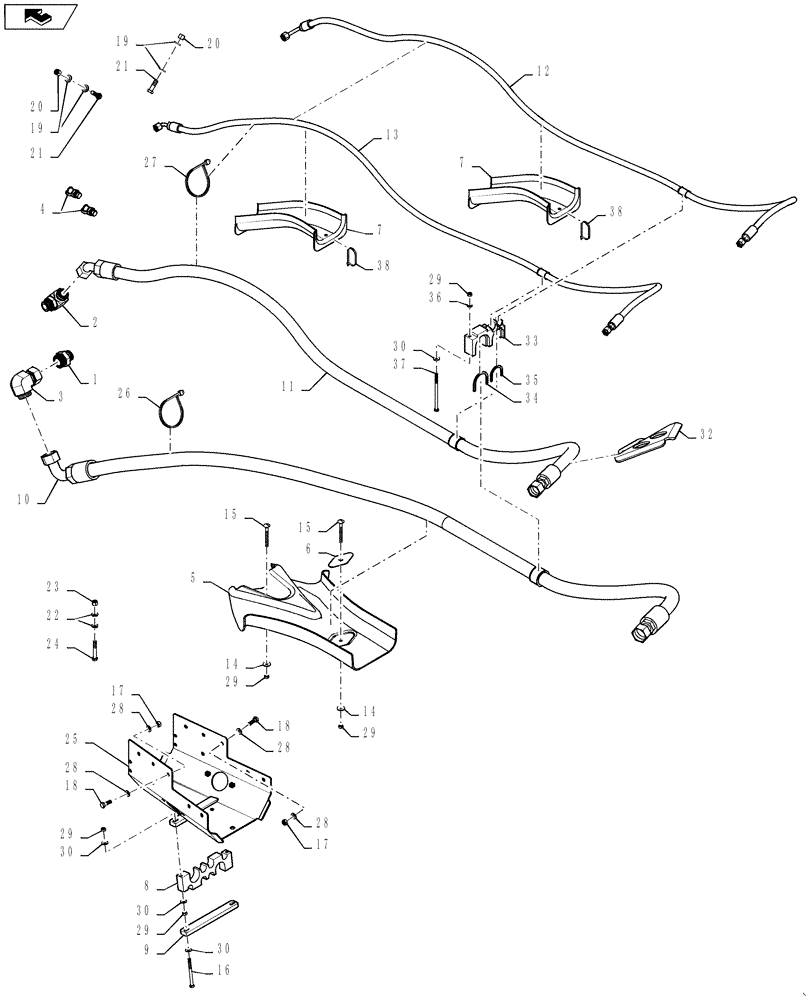

Схема запчастей Case IH STEIGER 400 - (35.220.02) - REMOTE HOSE LAYOUT - REAR SECTION (35) - HYDRAULIC SYSTEMS
28
30
28
2
home
19
24
30
20
21
34
1
19
18
15
15
30
11
38
14
7
36
3
37
38
29
26
22
12
6
7
30
35
14
5
17
32
20
4
17
23
27
25
13
28
9
18
21
28
29
8
29
10
29
33
29
16

Артикул

Название

Примечание

Количество

1

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

1шт.

2

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

, Serial Range: -ZCF129192

1шт.

3

701-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

1шт.

4

358968A1

FITTING

Diagnostic

2шт.

5

84193123

CHANNEL

Support, remote Hoses

1шт.

6

84193124

PLATE

Channel Hold Down

1шт.

7

84193125

CHANNEL

Support, Rear, Hoses

2шт.

8

362419A1

CLAMP

Collar

1шт.

9

405520A1

PLATE

Center Link

1шт.

10

84365645

HOSE ASSY.,31.75mm ID x 2978mm L, SAE 100R1

Aux. Return

1шт.

11

84259852

HOSE ASSY.

Aux. Supply

1шт.

12

84193113

HOSE ASSY.,9.53mm ID x 2977mm L, SAE 100R1

Aux. Pilot Pressure

1шт.

13

84193114

HOSE ASSY.,9.53mm ID x 2945mm L, SAE 100R17

Aux. Load Sense

1шт.

14

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

15

120040

CARRIAGE BOLT,Short Nk, M8 x 80mm, Cl 8.8

2шт.

16

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

18

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

21

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

24

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

25

84363118

BRACKET, SUPPORTING

Standard Hose Mount

1шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

27

440567A1

CABLE TIE

Cable Tie

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

14шт.

29

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

30

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

31

284895A1

HOSE PROTECTION

Air Tube (Not Shown)

1шт.

32

84493192

BRACKET

Articulation Hosse Support

1шт.

33

84494898

CLAMP

Nylon Hose Clamp

1шт.

34

84495279

RETAINER

Hose, 50mm

1шт.

35

84495283

RETAINER

Hose, 41mm

1шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

37

16046031

SCREW,Hex, M8 x 1.25 x 140mm, Cl 10.9

2шт.

38

22-824

CABLE TIE,3/16" x 7 1/4"

2шт.

Выбрано товаров: 38
