Запчасти Case IH STEIGER 400 (35.220.01) - REMOTE HOSE LAYOUT - FRONT SECTION (35) - HYDRAULIC SYSTEMS

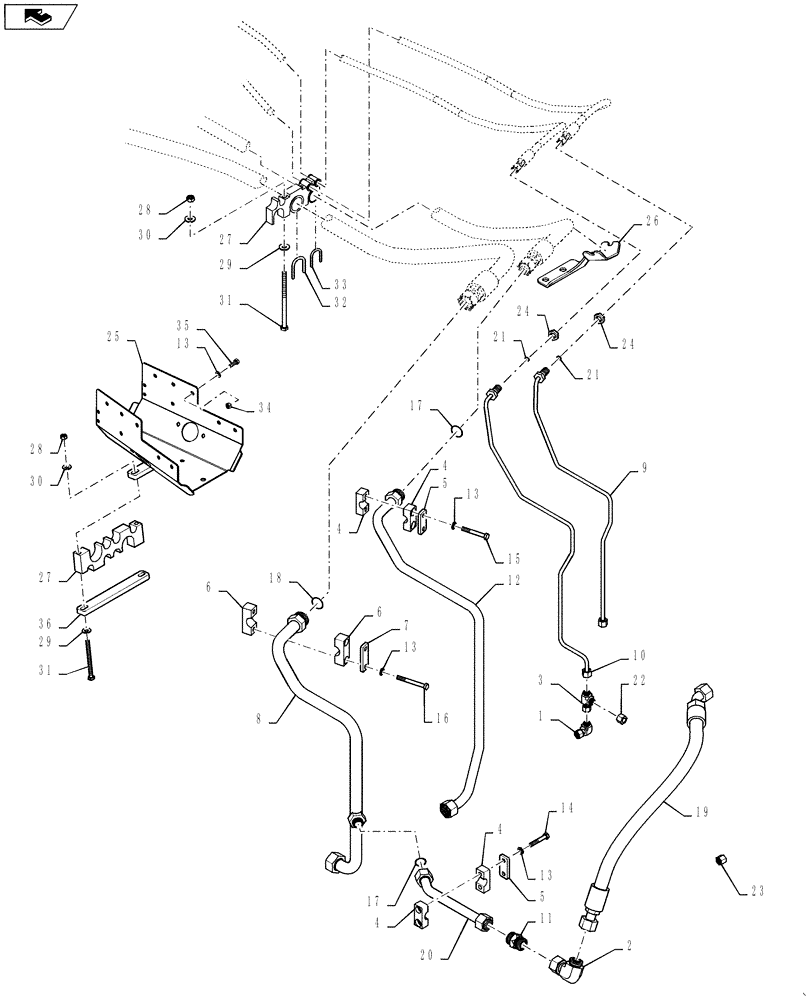

Схема запчастей Case IH STEIGER 400 - (35.220.01) - REMOTE HOSE LAYOUT - FRONT SECTION (35) - HYDRAULIC SYSTEMS
22
2
18
4
9
27
21
28
30
1
35
11
20
19
14
23
13
4
29
32
5
25
28
13
4
5
7
21
33
31
16
27
36
8
24
30
31
home
6
4
17
10
13
24
29
34
15
17
6
13
12
3
26

Артикул

Название

Примечание

Количество

1

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

2

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

3

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

4

367489A1

BLOCK

Tube Mounting

2шт.

5

367658A1

PLATE

Clamp Cover

2шт.

6

84196601

CLAMP,32mm ID

Tube Mounting

1шт.

7

8500858

PLATE

Clamp Cover

1шт.

8

84193091

HYD TUBE

Aux. Valve Return

1шт.

9

84193126

HYD TUBE

Aux. valve Load Sense

1шт.

10

84193128

HYD TUBE

Aux. valve Pilot Pressure

1шт.

11

84194878

CHECK VALVE

150 PSI

1шт.

12

84193093

HYD TUBE

Aux. Valve Supply

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

14шт.

14

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

15

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

2шт.

16

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

18

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

19

84378988

HOSE ASSY.,25.4mm ID x 851mm L, SAE 100R1

Aux. Return

1шт.

20

84193095

HYD TUBE

Aux. Valve Overflow

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

22

701-900

CAP,11/16" - 16

2шт.

23

701-917

CAP,Hex, 9/16" - 18 Female ORFS

1шт.

24

701-909

NUT,11/16" - 16

2шт.

25

84363118

BRACKET, SUPPORTING

Standard Hosse Mount

1шт.

26

84361533

BRACKET, SUPPORTING

Articulation Hose Mount, Serial Range: -ZCF129192

1шт.

26

84493192

BRACKET

Articulation Hose Mount, Start Serial: ZCF129192

1шт.

27

84474214

CLAMP

Hose, Serial Range: -ZCF129192

1шт.

27

84494898

CLAMP

Clamp Insert, Start Serial: ZCF129192

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

31

86574721

BOLT,Hex, M8 x 130mm, Cl 10.9

, Serial Range: -ZCF129192

2шт.

31

16046031

SCREW,Hex, M8 x 1.25 x 140mm, Cl 10.9

, Start Serial: ZCF129192

2шт.

32

84495279

RETAINER

Hose, 50 mm, Start Serial: ZCF129192

1шт.

33

84495283

RETAINER

Hose, 41mm, Start Serial: ZCF129192

1шт.

34

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

35

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

36

405520A1

PLATE

Center Link Hose Clamp

1шт.

Выбрано товаров: 39
