Запчасти Case IH STEIGER 400 (35.204.23) - DRAIN BOTTLES - AUXILIARY VALVE STACK - 4, 6, & 8 SPOOL (35) - HYDRAULIC SYSTEMS

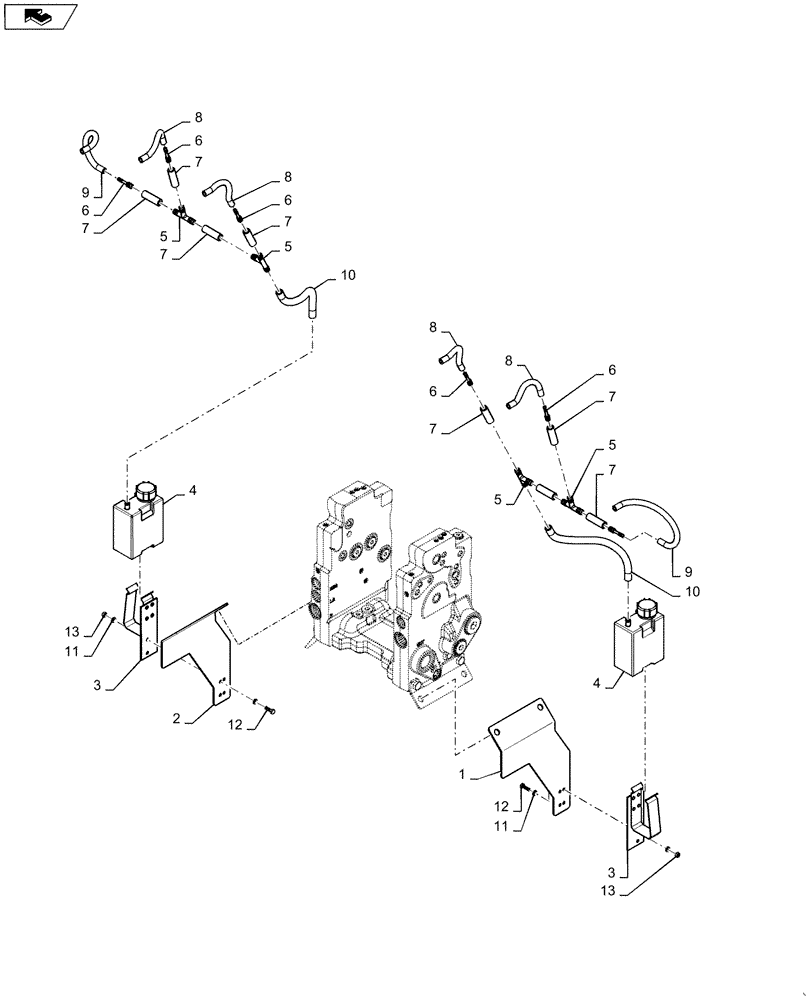

Схема запчастей Case IH STEIGER 400 - (35.204.23) - DRAIN BOTTLES - AUXILIARY VALVE STACK - 4, 6, & 8 SPOOL (35) - HYDRAULIC SYSTEMS
8
6
7
7
7
11
9
7
13
5
3
8
1
4
2
6
12
10
10
5
6
6
11
8
9
4
12
5
7
6
7
8
3
5
7
13

Артикул

Название

Примечание

Количество

1

84388332

BRACKET

Drain Bottle Right

1шт.

1

84388338

BRACKET

Drain Bottle, W/ Three Point Hitch, Right

1шт.

2

84388330

BRACKET

Drain Bottle Left

1шт.

2

84388335

BRACKET

Drain Bottle, W/ Three Point Hitch, Left

1шт.

3

280909A1

SUPPORT

Bottle

2шт.

4

242278A1

BOTTLE,0.6L

Spillage Bottle

2шт.

5

248632A1

TEE,3/8" Hose Barb x 3/8" Hose Barb x 3/8" Hose Barb

3/8 ID Hose, Barbed

1шт.

6

400192A1

REDUCER FITTING

Connector

1шт.

7

390427A1

HOSE,9.5mm ID x 50mm L

Cut To Length From A21562X Bulk Hose

1шт.

8

399840A1

HOSE,6.40 mm ID x 135.00 mm

Cut To Length From 31-1182 Bulk Hose

1шт.

9

400238A1

HOSE

Bulk

2шт.

10

31-1208

HOSE,0.38" ID x 12.00"

Bulk, -06, L = 304.8mm

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

12

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

4шт.

13

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

Выбрано товаров: 15
