(35.204.22) - DRAIN LINE - AUXILIARY VALVE STACK - 4, 6, & 8 SPOOL

Запчасти Case IH STEIGER 400 (35.204.22) - DRAIN LINE - AUXILIARY VALVE STACK - 4, 6, & 8 SPOOL (35) - HYDRAULIC SYSTEMS

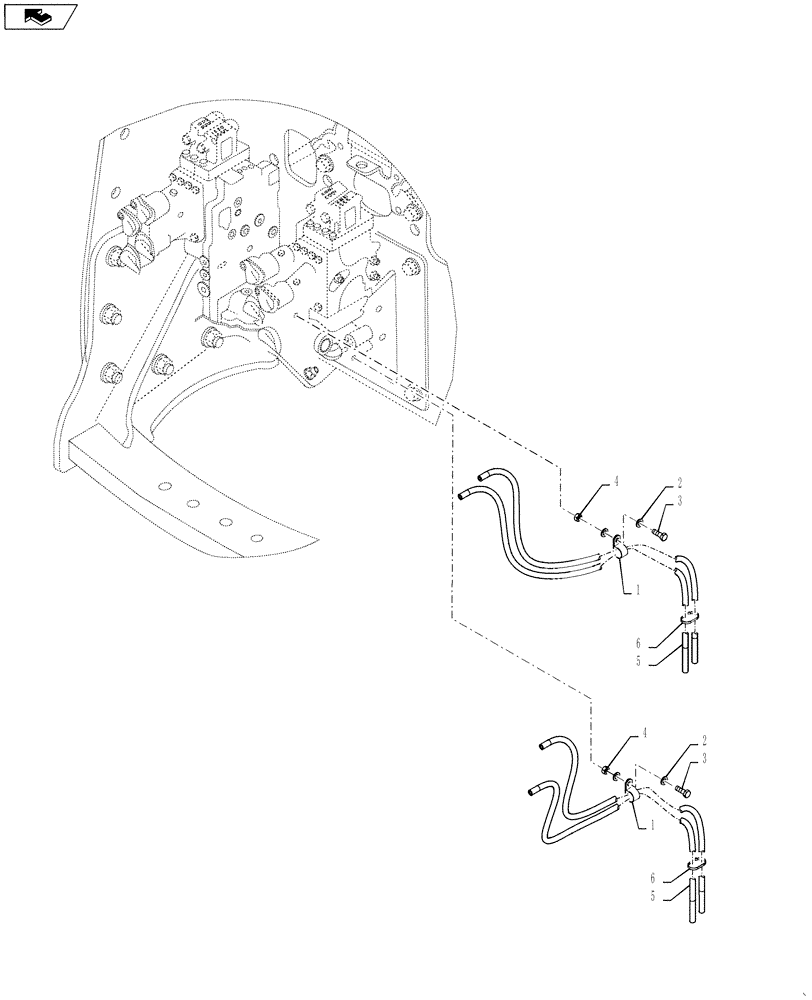

Схема запчастей Case IH STEIGER 400 - (35.204.22) - DRAIN LINE - AUXILIARY VALVE STACK - 4, 6, & 8 SPOOL (35) - HYDRAULIC SYSTEMS
3
1
3
4
6
1
2
5
5
4
6
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

31-1182

HOSE,6.35mm ID x 925mm L, SAE 30R2

1/4, Bulk, Cut to 925mm

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

175 - 200mm

2шт.
