Запчасти Case IH STEIGER 400 (35.204.19) - POWER BEYOND COUPLERS (35) - HYDRAULIC SYSTEMS

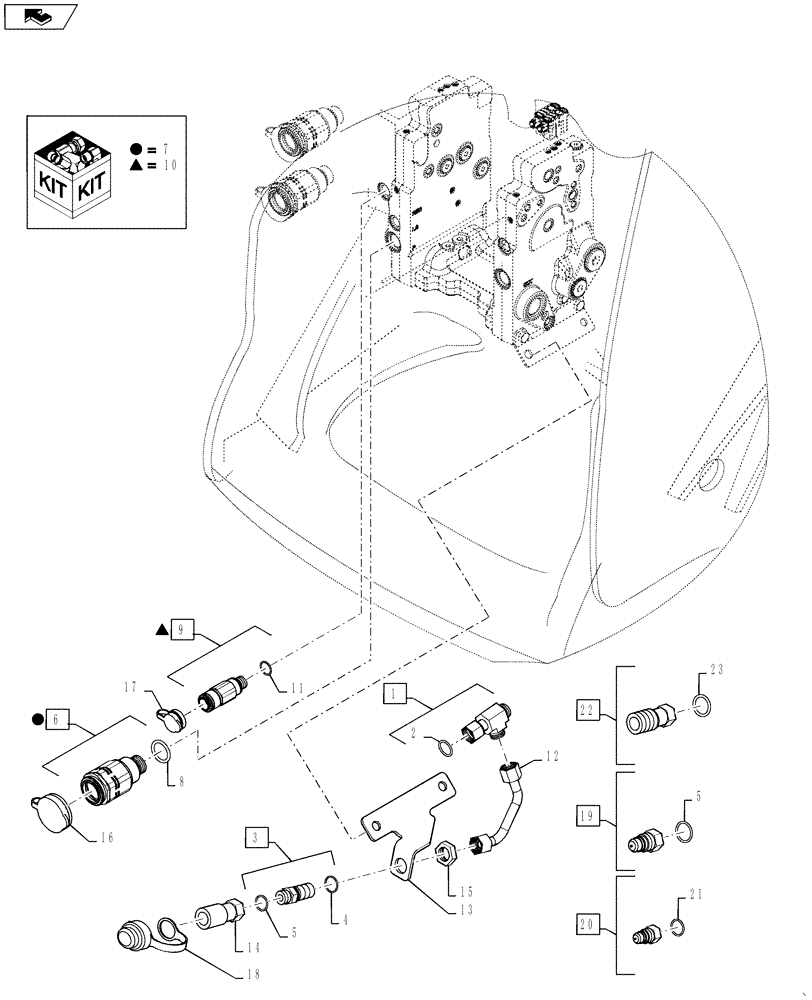

Схема запчастей Case IH STEIGER 400 - (35.204.19) - POWER BEYOND COUPLERS (35) - HYDRAULIC SYSTEMS
3
7
17
22
5
10
10
16
20
2
13
7
23
15
1
14
21
7
home
5
12
19
11
9
18
4
10
8
6

Артикул

Название

Примечание

Количество

1

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Inc. item 2

1шт.

2

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

3

436249A1

FITTING

Bulkhead, 3/4-16ORB X 13/16-14ORFS, Inc. items 4 & 5

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

6

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4" Coupler, Inc. items 7 & 8

2шт.

7

445015A1

SEAL KIT

3/4" Coupler, Inc. O-ring, Seal, & Washer

2шт.

8

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

9

294603A1

BODY

1/4" Coupler, Inc. items 10 & 11

1шт.

10

445014A1

SEAL KIT

1/4" Coupler, Inc. O-ring & Washers

1шт.

11

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

12

84305996

TUBE

Motor Return

1шт.

13

442477A2

BRACKET

Motor Drain

1шт.

14

385357A1

COUPLING

Female Disconnect

1шт.

15

701-903

NUT,13/16" - 16

1шт.

16

334216A1

CAP

3/4" Coupler Dust

2шт.

17

334218A1

CAP

1/4" Coupler Dust

1шт.

18

86539389

DUST CAP,29.2mm ID

Rubber Plug

1шт.

19

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

1/4 BODY X 9/16-18 ORB, Inc. item 5

1шт.

20

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

3/4 BODY X 1 1/16-12 ORB, Inc. item 21

2шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

22

385358A1

QUICK MALE COUPLING,3/8"

1/2" Male x 3/8" Female ORB, Inc. item 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Выбрано товаров: 23
