Запчасти Case IH STEIGER 400 (35.204.16) - VALVE - ASSY - CONNECTOR (35) - HYDRAULIC SYSTEMS

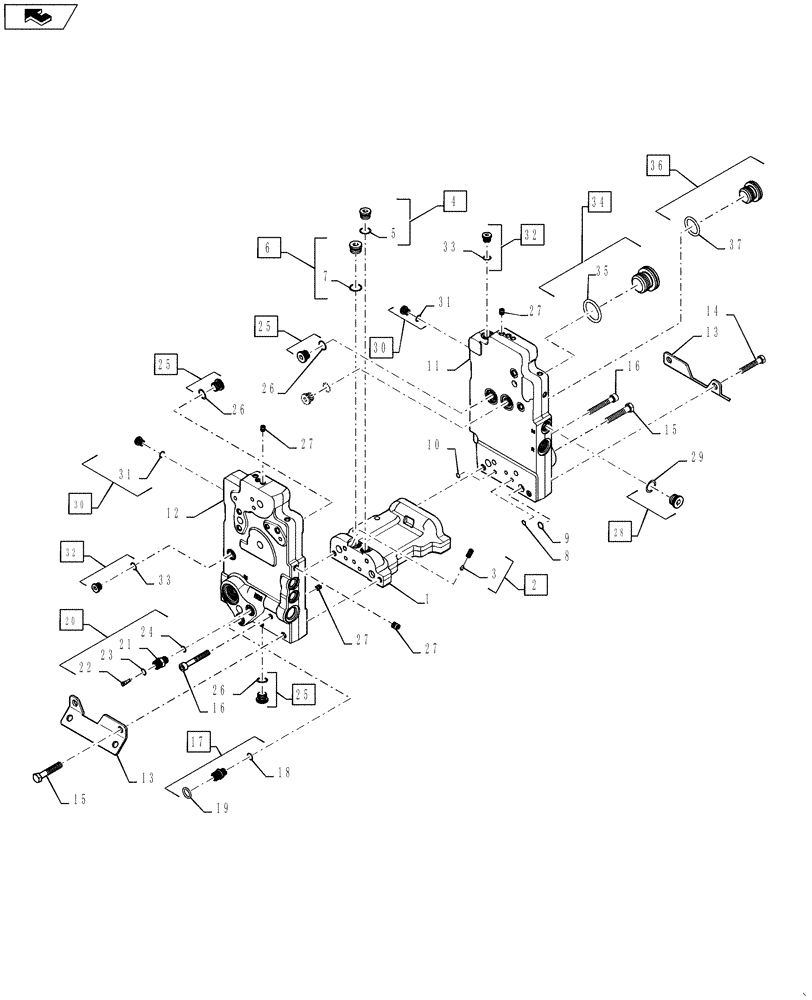

Схема запчастей Case IH STEIGER 400 - (35.204.16) - VALVE - ASSY - CONNECTOR (35) - HYDRAULIC SYSTEMS
37
23
30
29
32
home
28
27
33
25
1
8
13
25
30
26
27
31
27
17
18
2
16
33
13
6
31
34
15
11
14
4
22
5
26
3
27
12
10
15
9
7
32
20
36
35
16
24
19
26
21
25

Артикул

Название

Примечание

Количество

1

87711310

MANIFOLD VALVE

Manifold Connector Valve

1шт.

2

87607044

PLUG

Incl 3

1шт.

3

133519C1

SCREEN

1шт.

4

218-5210

PLUG,Hex, 3/4"-16 ORB

Incl 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

4шт.

9

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

4шт.

10

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

2шт.

11

87698822

MANIFOLD VALVE

Manifold, Inlet / Outlet, RH

1шт.

12

87698820

MANIFOLD VALVE

Manifold, Inlet / Outlet, LH

1шт.

13

338681A1

BRACKET

Support, Aux. Valve

2шт.

14

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

4шт.

15

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.

16

863-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

2шт.

17

339487A2

HYD CONNECTOR

Orifice Fitting, Incl 18 - 19

1шт.

18

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

334923A1

HYD CONNECTOR,M14 x 1.5 ORB x 11/16" - 16 ORFS

Pump, 45 GPH, Hyd. Oil, Incl 21 - 24

1шт.

21

334925A1

FITTING

STR 11/16-16 ORFS X M14 ORB

1шт.

22

NSS

NOT SOLD SEPARAT

Screen Filter, Hyd Oil - Incl w/ 20

1шт.

23

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

24

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

25

221578A1

PLUG,M18 x 1.5 ORB

Incl 26

7шт.

26

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

7шт.

27

353828A1

PLUG

Anvil, Expansion

16шт.

28

221579A1

PLUG,M22 x 1.5 ORB

Incl 29

1шт.

29

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

30

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

Incl 31

2шт.

31

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

32

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 33

2шт.

33

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

34

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Incl 35

1шт.

35

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

36

221580A1

PLUG,M27 x 2 ORB

Incl 37

1шт.

37

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 37
