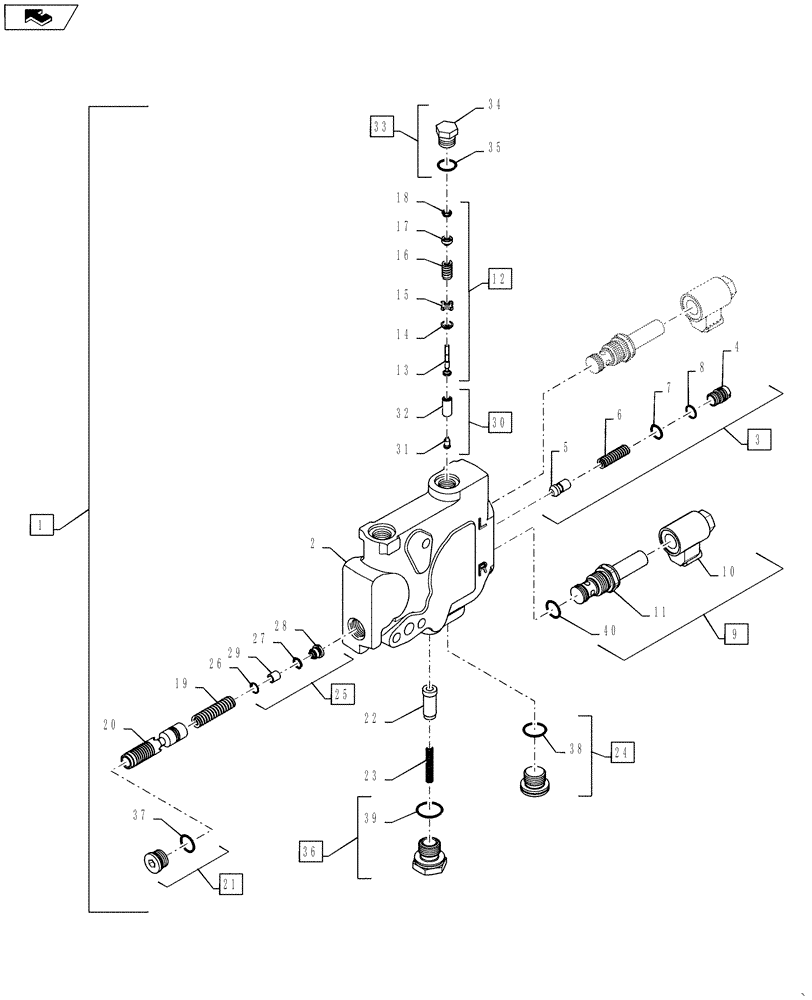

Запчасти Case IH STEIGER 400 (35.204.15) - VALVE - ASSY - THREE POINT HITCH (35) - HYDRAULIC SYSTEMS

1

84203467

HYD VALVE SECTION

Three Point Hitch, Inc. 2 - 39

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE BODY

1шт.

3

1542563C1

KIT

Logic, Incl 4 - 8

1шт.

4

1994580C1

PLUG

Logic Check

1шт.

5

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

Logic Check

1шт.

6

1994581C1

SPRING,6.1mm OD x 31.1mm L

Logic Check

1шт.

7

165212

O-RING,0.551" ID x 0.691" OD x 0.07"

1шт.

8

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back-up

1шт.

9

84281970

SOLENOID

Valve, Proportional Flow Control, Incl 10, 11, 40

2шт.

10

87608473

COIL

Solenoid, Hitch

2шт.

11

84294073

SOLENOID

Cartridge

2шт.

12

337425A3

VALVE, PRESSURE RELI

Incl 13 - 18

1шт.

13

337427A1

VALVE POPPET,2.93/3.5mm ID x 4.17/8mm OD x 37.25mm L

Relief

1шт.

14

337428A1

SEAT

Relief

1шт.

15

337430A1

GUIDE

Spring

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Relief

1шт.

17

NSS

NOT SOLD SEPARAT

Stop, Spring Adj.

1шт.

18

337433A1

COMPRESSION SPRING,Compression, 13.21mm OD x 12.289mm L

nti-Cav, Conical

1шт.

19

436854A1

SPRING,15.11mm OD x 63.35mm L

Compression, Long

1шт.

20

84187247

SPOOL,15.9mm ID x 19.32mm OD x 96mm L

Pressure Comp., Hitch

1шт.

21

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 37

1шт.

22

87648631

PIN,8mm OD x 19mm L

Load Sense

1шт.

23

87648596

SPRING,3.81mm OD x 23.19mm L

Aux. Signal Check

1шт.

24

221578A1

PLUG,M18 x 1.5 ORB

Incl 38

1шт.

25

87619813

CHECK VALVE,1/2" - 20

Incl 26 - 29

1шт.

26

100-2125

SNAP RING,M25, Int

1шт.

27

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

Valve, Check

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Orifice

1шт.

30

87518992

PLUG

Orifice, Incl 31 - 32

1шт.

31

133519C1

SCREEN

1шт.

32

NSS

NOT SOLD SEPARAT

Plug, Orifice

1шт.

33

385520A1

PLUG,Hex, 13.05mm ID x 22.23mm OD x 23.5mm L

Check Valve, Incl 34 - 35

1шт.

34

385521A1

PLUG

Check Valve

1шт.

35

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Incl 39

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

39

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

40

86637739

O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro

1шт.
