Запчасти Case IH STEIGER 400 (35.204.13) - VALVE - ASSY - AUXILIARY - MAIN, RIGHT, & LEFT (35) - HYDRAULIC SYSTEMS

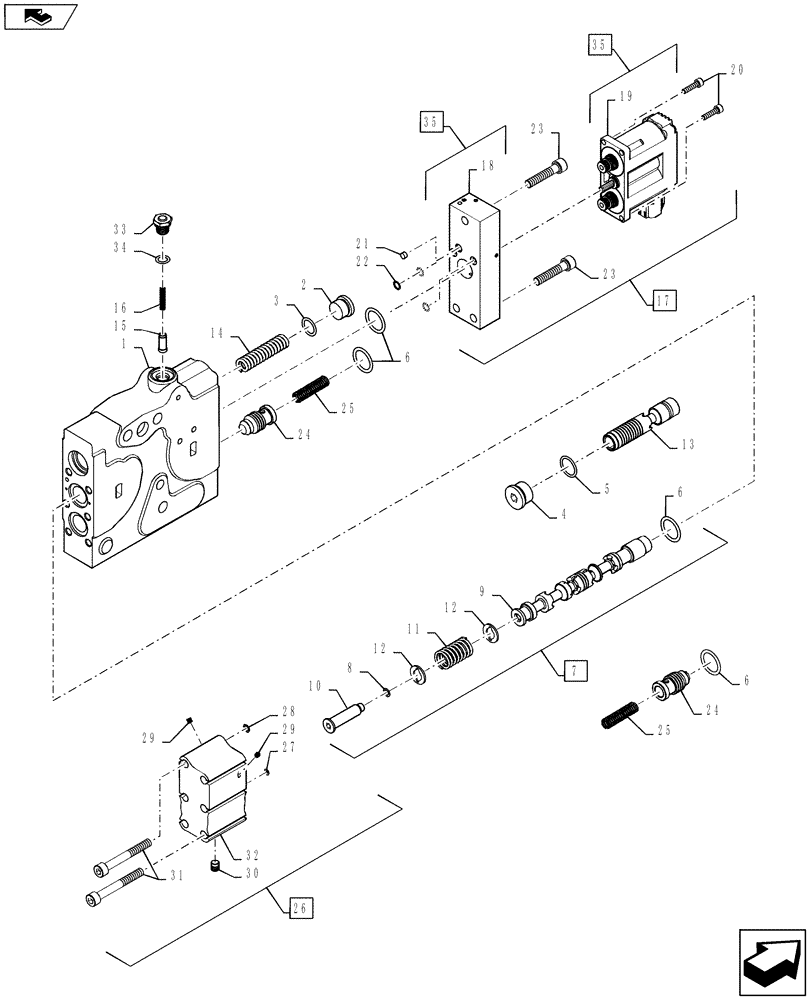

Схема запчастей Case IH STEIGER 400 - (35.204.13) - VALVE - ASSY - AUXILIARY - MAIN, RIGHT, & LEFT (35) - HYDRAULIC SYSTEMS
19
31
29
30
29
12
11
35
18
7
21
13
6
23
24
5
28
1
16
9
25
27
home
34
22
8
33
6
23
25
6
35
2
32
24
3
20
17
4
26
15
10
12
14

Артикул

Название

Примечание

Количество

1

87496186

HYD VALVE SECTION

Auxiliary, Main, Inc. 2 - 35

1шт.

1

47434186R

REMAN-HYD VALVE

Auxiliary, Main, Inc. 2 - 35

1шт.

1

47434186C

CORE-VALVE HYD

Return Number

1шт.

1

84260348

HYDRAULIC VALVE

Auxiliary, Main, Scraper Units, Inc. 2 - 35

1шт.

1

47595194R

REMAN-HYD VALVE

Reman Auxiliary, Main, Scraper Units, Inc. 2 - 35

1шт.

1

47595194C

CORE-VALVE HYD

Core Return Number

1шт.

1

87496191

HYD VALVE SECTION

Auxiliary, Right, Inc. 2 - 35

1шт.

1

87496191R

REMAN-HYD VALVE

Auxiliary, Right, Inc. 2 - 35

1шт.

1

87496191C

CORE-VALVE HYD

Return Number

1шт.

1

84260351

HYDRAULIC VALVE

Auxiliary, Right, Scraper Units, Inc. 2 - 35

1шт.

1

87496189

VALVE SECTION,Assembly, Aux Valve

Auxiliary, Left, Inc. 2 - 35

1шт.

1

47434188R

REMAN-HYD VALVE

Auxiliary, Left, Inc. 2 - 35

1шт.

1

47434188C

CORE-VALVE HYD

Return Number

1шт.

1

84260346

HYDRAULIC VALVE

Auxiliary, Left, Scraper Units, Incl 2 - 35

1шт.

2

218-5210

PLUG,Hex, 3/4"-16 ORB

Incl 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

4шт.

7

84317306

SPOOL

E-H Pilot, Incl 8 - 12

1шт.

7

84346021

SPOOL

Main E-H Pilot, Scraper Units Only, Incl 8 - 12

1шт.

8

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL, Main E-H Pilot - Incl w/ 7

1шт.

10

87437101

EXPANSION PLUG,Hex, 6.31mm ID x 15.5mm OD x 48.5mm L

1шт.

11

87437166

VALVE SPRING

1шт.

12

87437168

WASHER,11.75mm ID x 21mm OD x 1.5mm Thk

2шт.

13

84297867

SPOOL

Pressure Comp.

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL, Pressure Comp., Scraper Units Only - Incl w/ 7

1шт.

14

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

15

87648631

PIN,8mm OD x 19mm L

1шт.

16

87648596

SPRING,3.81mm OD x 23.19mm L

1шт.

17

84300441

SOLENOID

Valve, Incl 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BLOCK, Solenoid Adapter Plate - Incl w/ 1

1шт.

19

84300443

SOLENOID

Valve Assembly, Pilot Head w/Offset

1шт.

20

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

21

87714123

FILTER

100 - 150 Micron

1шт.

22

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

23

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

3шт.

24

84317307

POPPET

Main Lock Check

2шт.

25

87437167

VALVE SPRING,8.08mm ID x 10.92mm OD x 53.27mm L

2шт.

26

87329482

VALVE BODY

Incl 27 - 32

1шт.

27

87635377

O-RING,1.78mm Thk x 2.9mm ID, -6, 80 Duro

2шт.

28

87635378

O-RING,1.78mm Thk x 5.28mm ID, -9, 80 Duro

1шт.

29

282836A1

PLUG,4mm OD x 4mm L

Expansion, 4mm (Qty 5 used with 84260346)

2шт.

30

282839A1

PLUG,8mm OD x 8.5mm L

Expansion

1шт.

31

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

6шт.

32

87329482

VALVE BODY

1шт.

33

87648607

PLUG,M12 x 1.5 ORB

Load Sense, Incl 34

1шт.

34

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

35

282836A1

PLUG,4mm OD x 4mm L

Expansion, 4mm (Qty 5 used with 84260346)

2шт.

Выбрано товаров: 50
