Запчасти Case IH STEIGER 400 (35.204.11) - AUXILIARY CONTROL VALVE - 8 SPOOL (35) - HYDRAULIC SYSTEMS

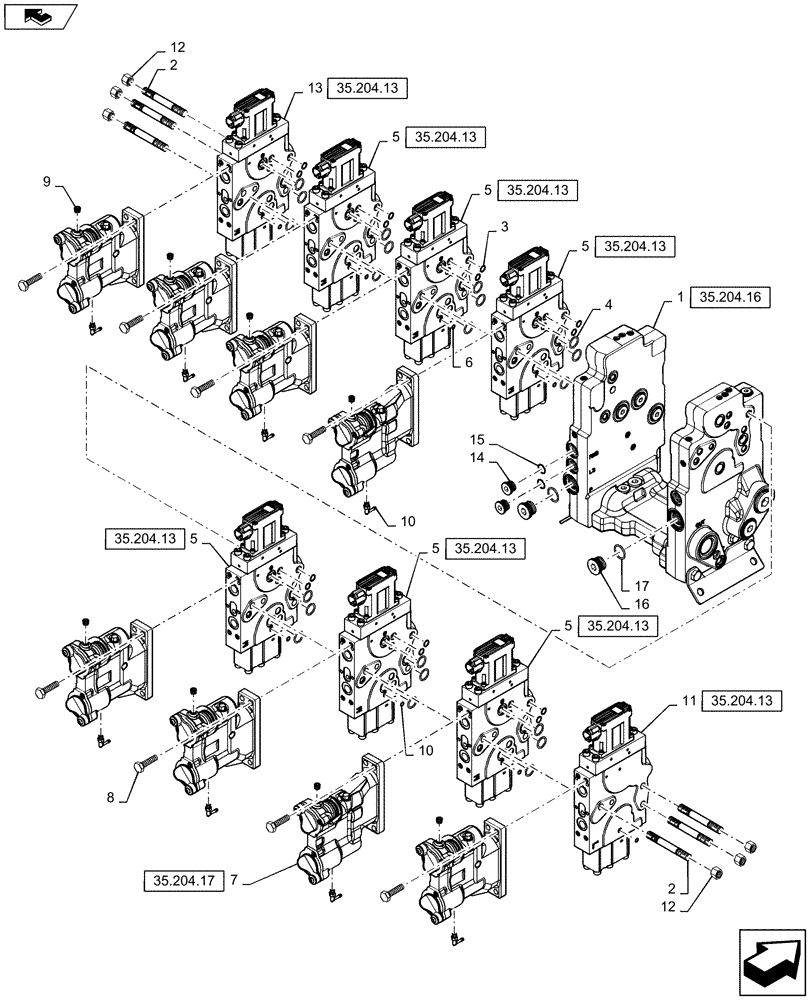

Схема запчастей Case IH STEIGER 400 - (35.204.11) - AUXILIARY CONTROL VALVE - 8 SPOOL (35) - HYDRAULIC SYSTEMS
7
35.204.13
home
17
5
4
5
16
2
6
5
35.204.13
5
10
35.204.13
15
35.204.13
14
35.204.13
8
1
35.204.13
5
12
10
11
3
9
35.204.13
13
35.204.13
35.204.16
2
12
35.204.17
5

Артикул

Название

Примечание

Количество

1

87698823

HYD VALVE SECTION

Connector Assembly

1шт.

2

87664023

STUD,M12 x 1.75 x 230mm

Stud, Tie, M12 x 1.75 x 230 mm L

6шт.

3

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

32шт.

4

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

48шт.

5

87496186

HYD VALVE SECTION

Aux., Main

6шт.

5

47434186R

REMAN-HYD VALVE

Aux., Main

6шт.

5

47434186C

CORE-VALVE HYD

Return Number

6шт.

6

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

21шт.

7

435375A1

VALVE

8шт.

8

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

32шт.

9

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

8шт.

10

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG 1/8 NPT BARBED

8шт.

11

87496189

VALVE SECTION,Assembly, Aux Valve

Aux. Valve - Left

1шт.

11

47434188R

REMAN-HYD VALVE

Aux. Valve - Left

1шт.

11

47434188C

CORE-VALVE HYD

Return Number

1шт.

12

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

13

87496191

HYD VALVE SECTION

Aux. Valve - Right

1шт.

13

87496191R

REMAN-HYD VALVE

Aux. Valve - Right

1шт.

13

87496191C

CORE-VALVE HYD

Return Number

1шт.

14

221578A1

PLUG,M18 x 1.5 ORB

Inc. 15

2шт.

15

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

16

221580A1

PLUG,M27 x 2 ORB

Inc. 17

2шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

Выбрано товаров: 23
