Запчасти Case IH STEIGER 400 (35.204.05) - AUXILIARY CONTROL VALVE - 4 SPOOL, W/ TRAILER BRAKES - SCRAPER UNITS (35) - HYDRAULIC SYSTEMS

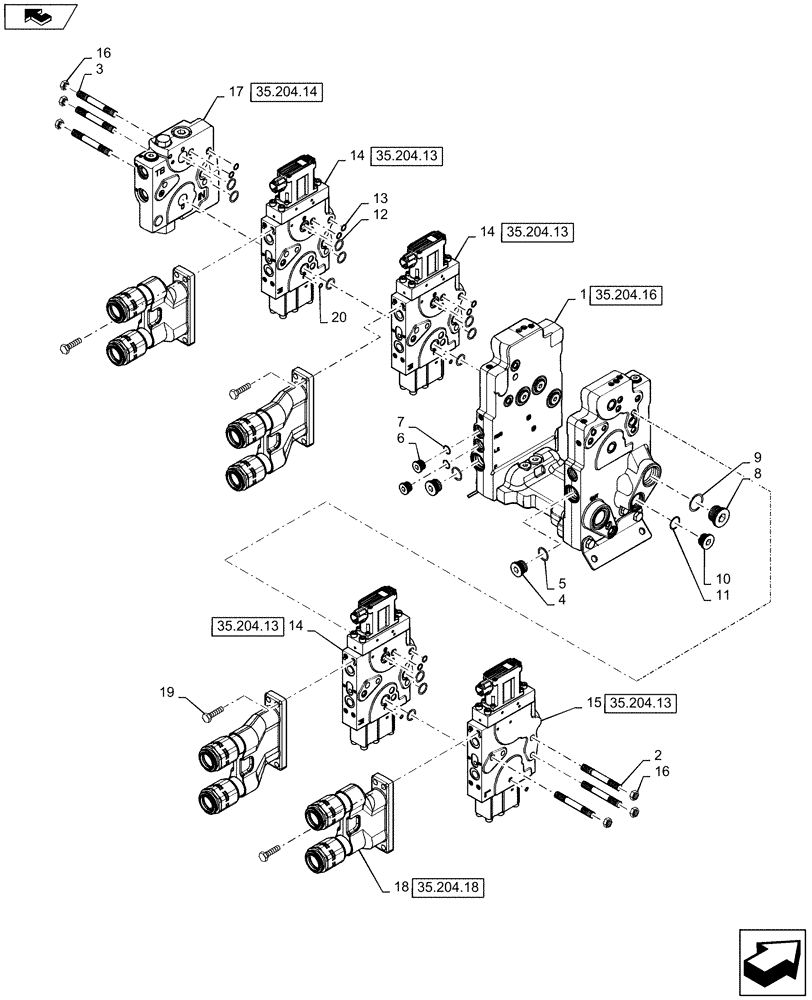

Схема запчастей Case IH STEIGER 400 - (35.204.05) - AUXILIARY CONTROL VALVE - 4 SPOOL, W/ TRAILER BRAKES - SCRAPER UNITS (35) - HYDRAULIC SYSTEMS
35.204.16
7
4
10
3
14
16
19
35.204.13
35.204.13
16
2
35.204.13
14
35.204.14
17
35.204.18
12
1
8
20
15
18
home
11
35.204.13
9
5
13
14
6

Артикул

Название

Примечание

Количество

1

87698823

HYD VALVE SECTION

Connector

1шт.

2

87669808

STUD

M12 x 1.75 x 140 mm L

3шт.

3

87687049

STUD

Tie, M12 x 1.75 x 195 mm L

3шт.

4

221580A1

PLUG,M27 x 2 ORB

Inc. 5

2шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

6

221578A1

PLUG,M18 x 1.5 ORB

Inc. 7

2шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

8

221579A1

PLUG,M22 x 1.5 ORB

Inc. 9

1шт.

9

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

10

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Inc. 11

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

23шт.

13

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

20шт.

14

84260348

HYDRAULIC VALVE

VALVE, Main Auxiliary, Scraper Units

3шт.

14

47595194R

REMAN-HYD VALVE

Reman Valve, Main Auxiliary, Scraper Units

1шт.

14

47595194C

CORE-VALVE HYD

Core Return Number

1шт.

15

84260346

HYDRAULIC VALVE

VALVE, Left Auxiliary, Scraper Unit

1шт.

16

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

17

84305371

VALVE

Trailer Brake

1шт.

18

418704A2

COUPLING

Assembly, Mega Flow

4шт.

19

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

20

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

9шт.

Выбрано товаров: 22
