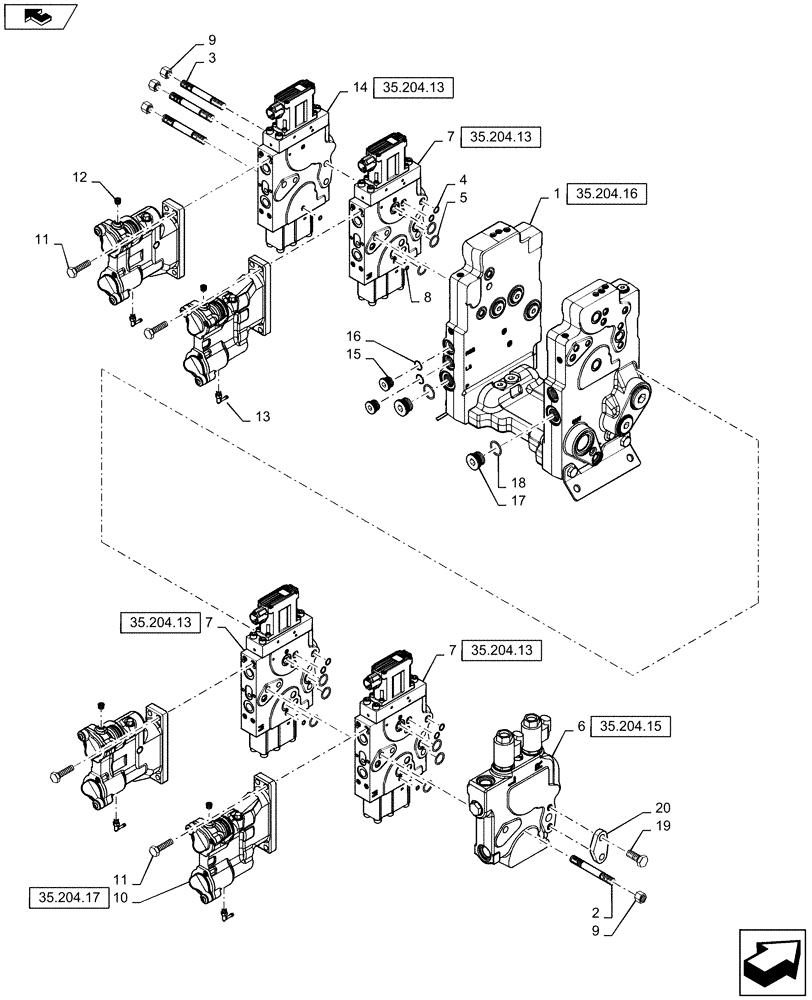

Запчасти Case IH STEIGER 400 (35.204.03) - AUXILIARY CONTROL VALVE - 4 SPOOL, W/ THREE POINT HITCH (35) - HYDRAULIC SYSTEMS

1

87698823

HYD VALVE SECTION

Connector Assembly

1шт.

2

87687049

STUD

Tie, M12 X 1.75 x 195 mm L

1шт.

3

87669808

STUD

Stud, Tie, M12 x 1.75 x 140 mm L

3шт.

4

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

20шт.

5

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

28шт.

6

84203467

HYD VALVE SECTION

Three Point Hitch

1шт.

7

87496186

HYD VALVE SECTION

Aux., Main

3шт.

7

47434186R

REMAN-HYD VALVE

Aux., Main

3шт.

7

47434186C

CORE-VALVE HYD

Return Number

3шт.

8

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

12шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

4шт.

10

435375A1

VALVE

4шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

12

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

4шт.

13

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG 1/8 NPT BARBED

4шт.

14

87496191

HYD VALVE SECTION

Aux. Valve - Right

1шт.

14

87496191R

REMAN-HYD VALVE

Aux. Valve - Right

1шт.

14

87496191C

CORE-VALVE HYD

Return Number

1шт.

15

221578A1

PLUG,M18 x 1.5 ORB

2шт.

16

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

17

221580A1

PLUG,M27 x 2 ORB

2шт.

18

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

19

87026184

BOLT,Hex, M12 x 170mm, Cl 10.9

2шт.

20

84203478

COVER

Hitch Inlet

1шт.
