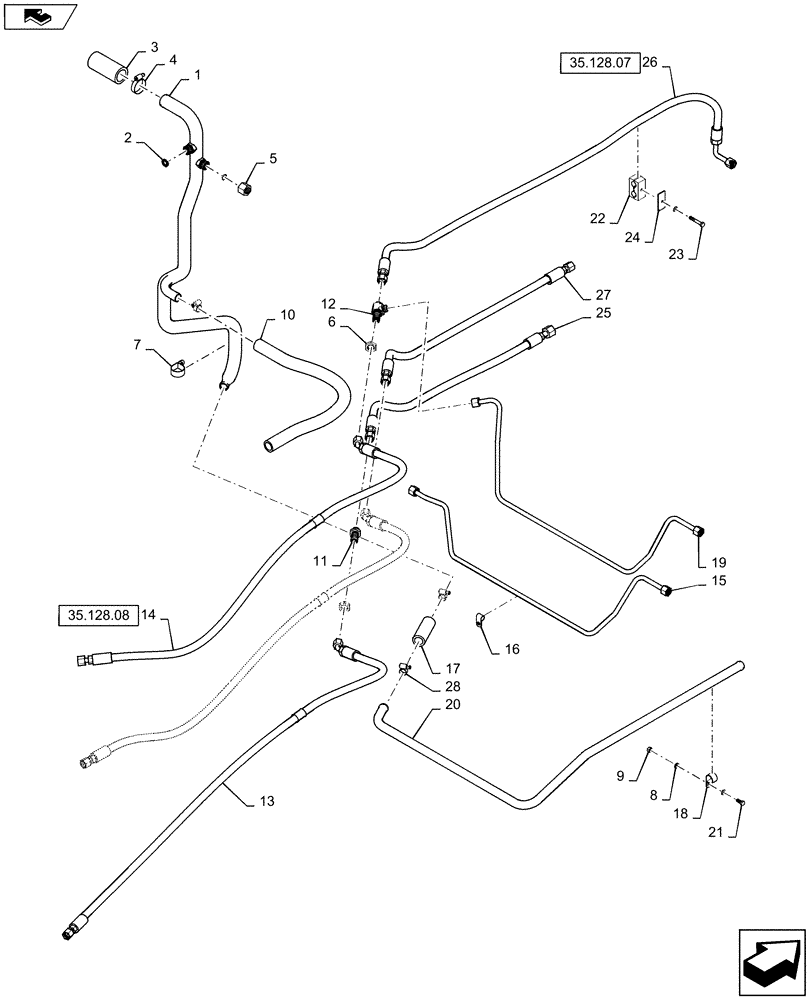

Запчасти Case IH STEIGER 400 (35.128.09) - 315 / 425 SERIES AXLE LUBE W/DIFF LOCK-HOSE & FITTING LAYOUT HOMOLOGATION (35) - HYDRAULIC SYSTEMS

1

84280339

RIGID TUBE

Main Axle Drain

1шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

3

84389882

HYDRAULIC HOSE,9.53mm ID x 1365mm L, SAE 100R1

Diff Lock PP H

1шт.

4

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

4шт.

5

701-906

CAP,1" - 14

2шт.

6

701-903

NUT,13/16" - 16

3шт.

7

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

9

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

10

31-2755

HOSE,1.00" ID

Bulk Hose; Cut to Length: 737mm (29.00 IN)

1шт.

11

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

12

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

13

84280346

HOSE ASSY.

Axle Supply

2шт.

14

84281779

HOSE ASSY.

Park Brake Pressure

1шт.

15

84178851

HYD TUBE

Tow Valve Drain To Tank

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

17

31-2757

HOSE,1.00" ID x 4.00"

Bulk Hose; Cut to Length: A/R

1шт.

18

515-23254

CLAMP,1", Insul, 3/8" Bolt

4шт.

19

84178848

HYD TUBE

Park Brake Supply

1шт.

20

84178840

HYD TUBE

Front Axle Drain To Tank

1шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

22

87105732

CLAMP

2шт.

23

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

24

87000230

PLATE

4шт.

25

84248660

HOSE ASSY.

Front Axle Lube Pressure

1шт.

26

84197908

HOSE ASSY.

Front Park Brake Pressure

1шт.

27

84178872

HOSE ASSY.

Front Service Brake

1шт.

28

214-1520

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm, W/ Liner

2шт.
