Запчасти Case IH STEIGER 400 (35.128.06) - 315 / 425 SERIES AXLE LUBE, W/ DIFF. LOCK - HOSE & FITTING LAYOUT (35) - HYDRAULIC SYSTEMS

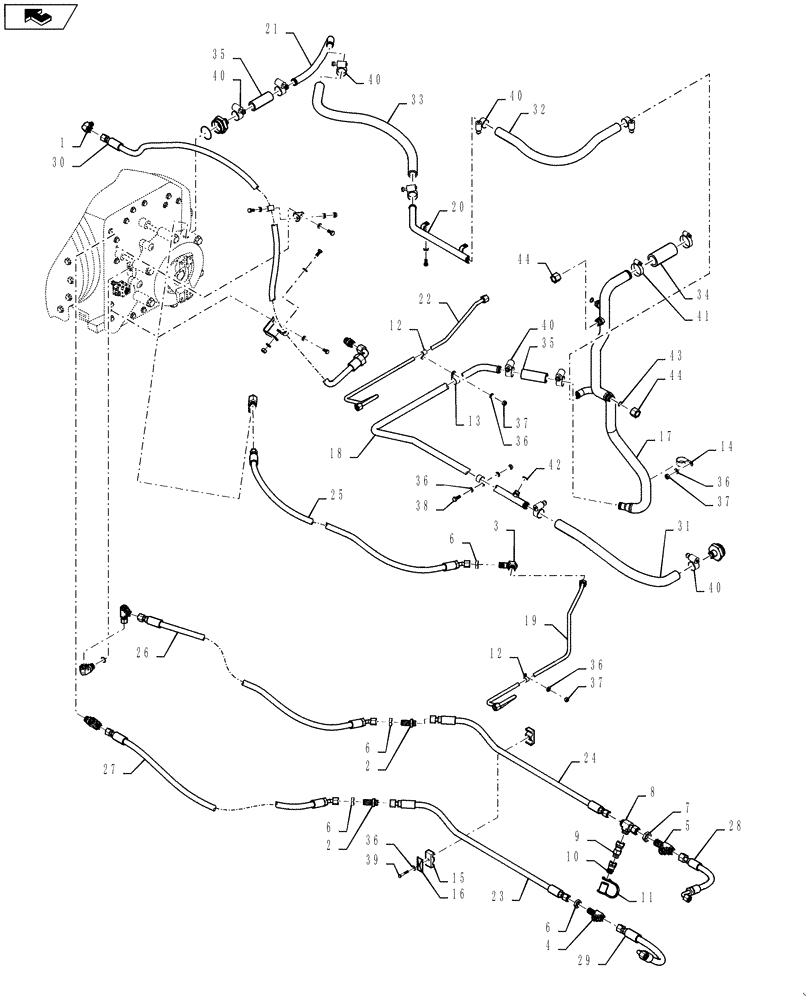

Схема запчастей Case IH STEIGER 400 - (35.128.06) - 315 / 425 SERIES AXLE LUBE, W/ DIFF. LOCK - HOSE & FITTING LAYOUT (35) - HYDRAULIC SYSTEMS
13
37
40
36
27
37
43
6
44
2
36
28
40
1
11
19
40
4
37
29
24
31
40
2
6
39
34
32
14
36
23
5
12
18
36
3
9
33
42
25
6
8
20
35
home
16
36
17
22
7
10
41
35
12
26
40
44
6
30
21
15
38

Артикул

Название

Примечание

Количество

1

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

2

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

3

701-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

4

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

5

84191902

RUN TEE

Bulkhead, ORFS-ORFS-ORFS, 16mm

1шт.

6

701-903

NUT,13/16" - 16

4шт.

7

701-919

BHD LOCK NUT,1" - 14

1шт.

8

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

9

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

M22 x 1.5 ORB x 1-14 SWL ORFS

1шт.

10

392690A1

COUPLING

1шт.

11

399032A1

CAP

Dust

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

13

515-23254

CLAMP,1", Insul, 3/8" Bolt

3шт.

14

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

15

50-2551T1

CLAMP

Clamp Half

2шт.

16

50-2533T1

PLATE

Clamp Cover Plate

1шт.

17

84280339

RIGID TUBE

Main Axle Drain

1шт.

18

84178840

HYD TUBE

Front Axle Drain to Tank

1шт.

19

84178848

HYD TUBE

Park Brake Supply

1шт.

20

84217058

HYD TUBE

Rear Axle to Tank

1шт.

21

84280337

RIGID TUBE

Rear Axle Drain

1шт.

22

84178851

HYD TUBE

Tow Valve Drain to Tank

1шт.

23

84178872

HOSE ASSY.

Front Service Brake

1шт.

24

84248660

HOSE ASSY.

Front Axle Lube Pressure

1шт.

25

84281779

HOSE ASSY.

Park Brake Pressure

1шт.

26

84280346

HOSE ASSY.

Axle Supply

2шт.

27

84280346

HOSE ASSY.

Axle Supply

2шт.

28

84197910

HOSE ASSY.,12.7mm ID x 450mm L, SAE 100R1

Front Axle Lube

1шт.

29

84181005

HOSE ASSY.,12.7mm ID x 550mm L, SAE 100R1

Front Axle Brake Pressure

1шт.

30

84189754

HOSE ASSY.

Aux. Drain to Rear Axle

1шт.

31

31-2755

HOSE,1.00" ID

Order Bulk Hose P/N 31-2755, Cut to Length; 24.88 IN (632mm)

1шт.

32

31-2755

HOSE,1.00" ID

Order Bulk Hose P/N 31-2755, Cut to Length; 29.00 IN ( 737mm)

1шт.

33

31-2755

HOSE,1.00" ID

Order Bulk Hose P/N 31-2755, Cut to Length; 39.00 IN (991mm)

1шт.

34

1-4482

LARGE HOSE

Order Bulk Hose P/N 1-4482 Cut to Length: 4.50 IN (114mm)

1шт.

35

31-2757

HOSE,1.00" ID x 4.00"

2шт.

36

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

37

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

39

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

40

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

10шт.

41

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

42

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

44

701-906

CAP,1" - 14

1шт.

Выбрано товаров: 44
