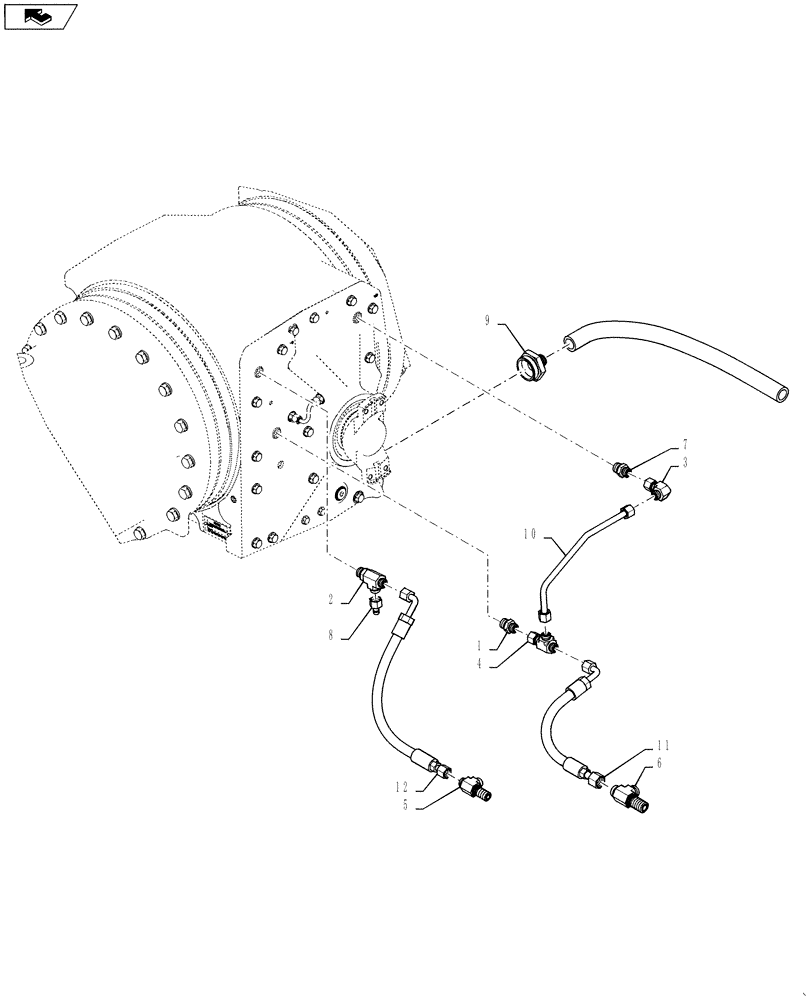

Запчасти Case IH STEIGER 400 (35.128.04) - 315 / 425 SERIES AXLE LUBE, FRONT AXLE W/O DIFF. LOCK - HOSE & FITTINGS (35) - HYDRAULIC SYSTEMS

1

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

2

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

4

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

5

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

6

84191902

RUN TEE

Bulkhead, ORFS-ORFS-ORFS, 16mm

1шт.

7

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

1шт.

8

190316A1

COUPLING

Coupler

1шт.

9

337545A1

HYD CONNECTOR

1шт.

10

84224484

RIGID TUBE

Axle Lube Crossover

1шт.

11

84197910

HOSE ASSY.,12.7mm ID x 450mm L, SAE 100R1

Front Axle Lube

1шт.

12

84181005

HOSE ASSY.,12.7mm ID x 550mm L, SAE 100R1

Front Axle Brake Pressure

1шт.
