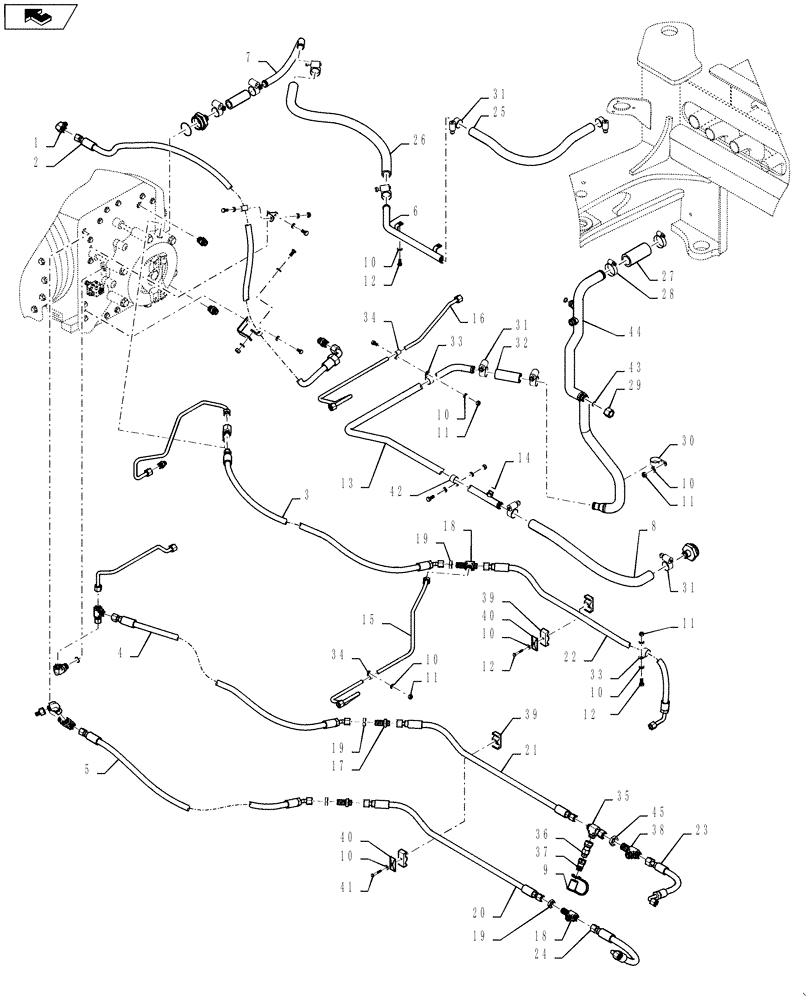

Запчасти Case IH STEIGER 400 (35.128.03) - 315 / 425 SERIES AXLE LUBE, FRONT, W/DIFF. LOCK - HOSE & FITTING LAYOUT (35) - HYDRAULIC SYSTEMS

1

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

2

84189754

HOSE ASSY.

Aux. Drain to Rear Axle

1шт.

3

84281779

HOSE ASSY.

Park Brake Pressure

1шт.

4

84280346

HOSE ASSY.

Axle Supply

1шт.

5

84280346

HOSE ASSY.

Axle Supply

1шт.

6

84217058

HYD TUBE

Rear Axle to Tank

1шт.

7

84280337

RIGID TUBE

Rear Axle Drain

1шт.

8

31-2755

HOSE,1.00" ID

Order Bulk P/N: 31-2755, Cut to Length; 24.88 IN (632mm)

1шт.

9

399032A1

CAP

Dust

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

12

920019731

SCREW,BTN HD, M8 x 20mm, SST

SHCS, M8 x 20

1шт.

13

84178840

HYD TUBE

Front Axle Drain to Tank

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

84178848

HYD TUBE

Park Brake Supply

1шт.

16

84178851

HYD TUBE

Tow Valve Drain to Tank

1шт.

17

701-121

UNION,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

18

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

19

701-903

NUT,13/16" - 16

1шт.

20

84178872

HOSE ASSY.

Service Brake, Front

1шт.

21

84248660

HOSE ASSY.

Front Axle Lube Pressure

1шт.

22

84197908

HOSE ASSY.

Front Park Brake Pressure

1шт.

23

84197910

HOSE ASSY.,12.7mm ID x 450mm L, SAE 100R1

Front Axle Lube

1шт.

24

84181005

HOSE ASSY.,12.7mm ID x 550mm L, SAE 100R1

Front Brake Pressure

1шт.

25

31-2755

HOSE,1.00" ID

Order Bulk P/N 31-2755, Cut to Length; 29.00 IN (737mm)

1шт.

26

31-2755

HOSE,1.00" ID

Order Bulk P/N 31-2755, Cut to Length; 39.00 IN (991mm)

1шт.

27

1-4482

LARGE HOSE

Order Bulk P/N 1-4482, Cut to Length; 5.00 IN (127mm)

1шт.

28

214-1536

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm, W/ Liner

2шт.

29

701-906

CAP,1" - 14

1шт.

30

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

31

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

32

31-2755

HOSE,1.00" ID

Order Bulk P/N 31-2755, Cut to Length; 4.00 IN (102mm)

1шт.

33

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

34

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

35

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

1шт.

36

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

M22 x 1.5 ORB x 1-14 SWL ORFS

1шт.

37

392690A1

COUPLING

1шт.

38

84191902

RUN TEE

Bulkhead, ORFS-ORFS-ORFS, 16mm

1шт.

39

50-2551T1

CLAMP

Clamp, Tube

1шт.

40

50-2533T1

PLATE

Tube Clamp

1шт.

41

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

1шт.

42

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

43

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

44

84280339

RIGID TUBE

Main Axle Drain

1шт.

45

701-919

BHD LOCK NUT,1" - 14

1шт.
